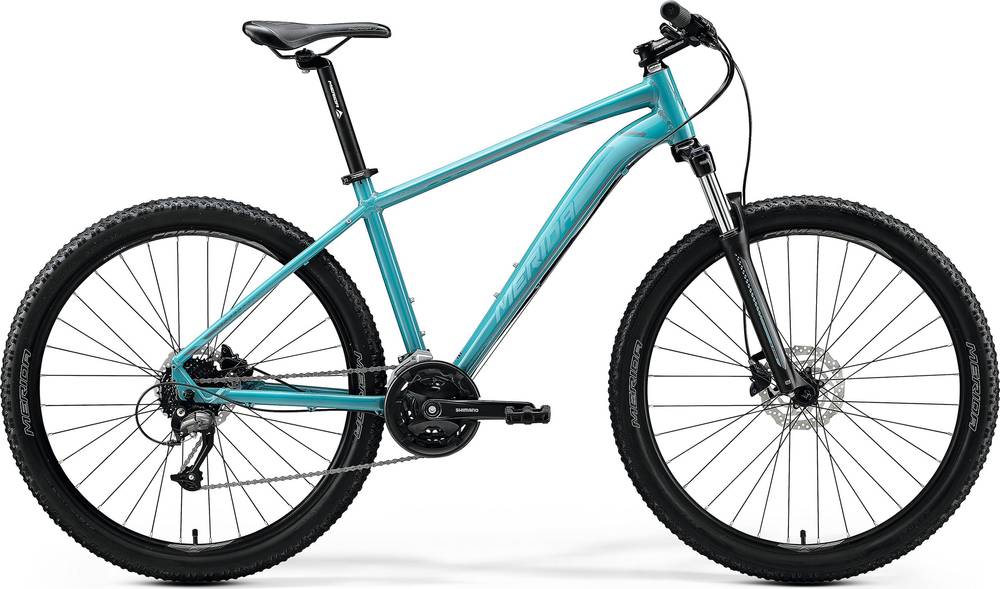

Merida BIG.SEVEN 40 2020
2020 Mountain
Estimate price |
703$
Weight | 15.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN SPEED N, material: aluminium, 27.5" wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour XCM HLO, Coil, 100mm suspension travel, lockout
Drivetrain
Rear Derailleur
Shimano RD-M370
Front Derailleur
Shimano FD-M2000
Shift Levers
Shimano ST-EF505
Cassette
Shimano CS-HG200, 11-32 teeth, 9 speed
Crank
Shimano MT100, 40-30-22 teeth, 170 mm-XS/S, 175 mm-M/L
Bottom Bracket
Shimano BB-UN100
Chain
KMC M99
Wheels
Rims
MERIDA CC, 17mm inner width, material: aluminium
Tires
MERIDA K1080
Brakes
Brakes
Shimano ST-EF505
Brake Levers
Shimano ST-EF505
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Headset
FSA NO.10P Neck15
Seat
Saddle
MERIDA Sport comfort
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Front Center | 650 | 671 mm | 692 mm |
| Rake | 42 mm | 43 mm | 42 mm |
| Trail | 91 mm | 90 mm | 91 mm |
| Stack | 574 mm | 588 mm | 602 mm |
| Reach | 391 mm | 406 mm | 422 mm |
| Top Tube Length | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1080 mm | 1101 mm | 1122 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 698 mm | 750 mm | 784 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
BIG.SEVEN 40 completes the Merida Bigseven model. Merida launched 161 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Merida BIG.SEVEN 15-D 2020 is the most economical model, with a starting price of 523$. Merida BIG.SEVEN 300 2020 on the other hand costs 973$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 639$. Doing a quick comparison, we notice that BIG.SEVEN 40 price is 198.12% smaller than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 15.2 kg (33.51 lbs), the BIG.SEVEN 40 model is much heavier than average. In conclusion, the average Crosscountry bike weighs 22.58% less than BIG.SEVEN 40.
Overview of components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Merida BIG.SEVEN 40 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.SEVEN 40 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
