Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork SunTour XCM HLO -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN SPEED
Suspension Fork
SR 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG
Chain
Chain 9S
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Big 7 D
Spokes
stainless silver
Tires
MERIDA 27 2.1
Brakes
Brakes
Tektro MA hydraulic 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA OS 690 R15
Headset
EGG steel-B
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.561 mm | 1.566 mm | 1.563 mm | 1.588 mm | 1.583 mm | mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | mm |
| Front Center | 618 mm | 629 mm | 633 mm | 643 mm | 652 mm | 662 mm | mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 43 mm | mm |
| Trail | 85 mm | 85 mm | 81 mm | 81 mm | 77 mm | 77 mm | mm |
| Stack | 593 mm | 598 mm | 609 mm | 619 mm | 640 mm | 649 mm | mm |
| Reach | 374 mm | 383 mm | 389 mm | 396 mm | 403 mm | 410 mm | mm |
| Top Tube Length | 550 mm | 560 mm | 575 mm | 585 mm | 605 mm | 615 mm | mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 546 mm | 584 mm | mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm | 145 mm | 155 mm | mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | mm |
| Wheelbase | 1042 mm | 1053 mm | 1057 mm | 1068 mm | 1077 mm | 1087 mm | mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | mm |
| Standover Height | 650 | 686 mm | 731 mm | 764 mm | 826 mm | 856 mm | mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

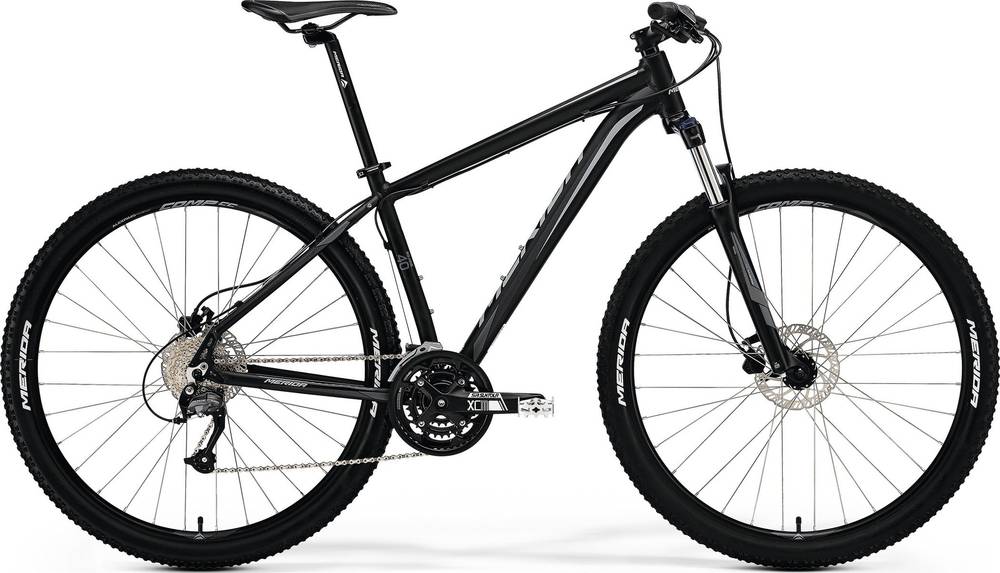

BIG.SEVEN 40-D is a Merida Bigseven model. Merida released 161 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 15.3 kg (33.73 lbs), Merida bike is much heavier than average. In short, the average Crosscountry bike weight is 23.39% lower than this one.
Overview of components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on BIG.SEVEN 40-D are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.SEVEN 40-D comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
