Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS
Suspension Fork
Rock Shox FS 30STK27 SA 100
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Front Derailleur
Shimano Deore double
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M627 38-24
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA Big 7 comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 27.5 2.2 fold
Brakes
Brakes
Shimano M315 180 cen / Shimano M315 160 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 700 R12
Headset
BC OV Neck
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 20" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.48 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 619 mm | 629 mm | 639 mm | 659 mm | 658 mm |
| Rake | 42 mm | 42 mm | 43 mm | 41 mm | 42 mm |
| Trail | 81 mm | 81 mm | 77 mm | 79 mm | 75 mm |
| Stack | 576 mm | 581 mm | 588 mm | 607 mm | 618 mm |
| Reach | 377 mm | 385 mm | 397 mm | 412 mm | 412 mm |
| Top Tube Length | 549 mm | 559 mm | 579 mm | 599 mm | 609 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 508 mm | 546 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1039 mm | 1049 mm | 1059 mm | 1079 mm | 1078 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 657 mm | 692 mm | 735 mm | 798 mm | 827 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

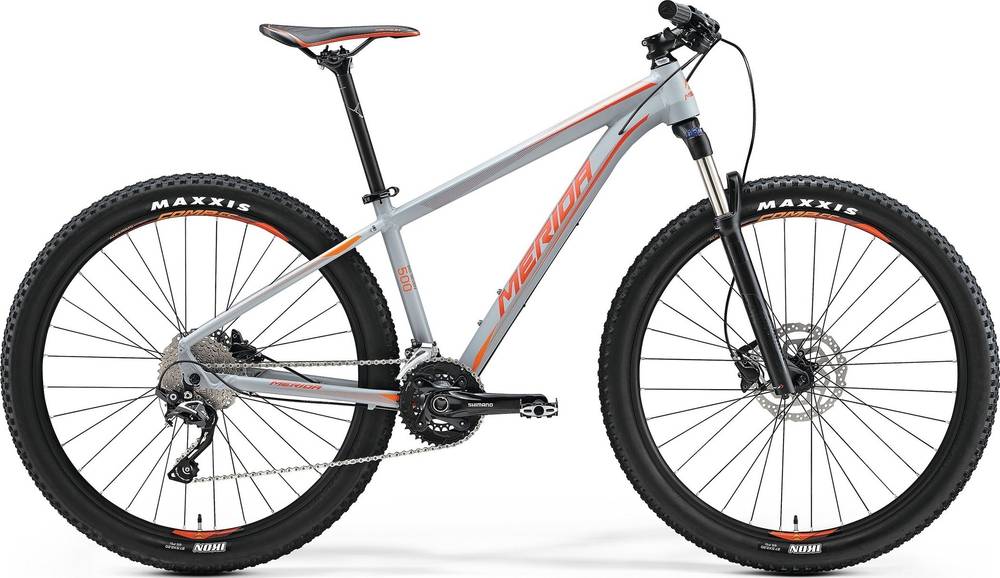

BIG.SEVEN 500 is part of the Merida Bigseven model. There are 161 bikes that carry this model name. Take a sneak peek at all Merida Bigseven bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, BIG.SEVEN 500 has a weight of 12.83 kg (28.29 lbs). In conclusion, the average Crosscountry bike weighs 3.47% less than BIG.SEVEN 500.
Overview of components
Wheels size
When leaving the production line, the BIG.SEVEN 500 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
