Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Judy
-
Groupset CUES, Shimano -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS IV, 100 mm suspension travel, material: aluminium, 27.5x2.25" max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
Rock Shox Judy TK, Coil, 100 mm suspension travel Lockout, 42 mm fork offset, 27.5x2.25" max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U3020-9, SGS
Front Derailleur
Shimano CUES U4000
Shift Levers
Shimano CUES U4000
Cassette
Shimano CS-LG300, 11-36 teeth, 9 speed
Crank
Shimano CUES U4000-2, 36-22 teeth, MAT Aluminium, 170 mm-XS/S, 175 mm-M/L
Bottom Bracket
Shimano BB-UN101 73-123
Chain
Sunrace CN11A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17 mm inner width, material: aluminium
Spokes
Black steel
Tires
MERIDA K1080, 27.5x2.2", wire
Brakes
Brakes
Tektro M275, hydraulic brake
Cockpit
Handlebar
MERIDA CC, material: aluminium, 690 mm width, 15 mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA Sport comfort
Seatpost
MERIDA CC, 30.9 mm diameter, 15 mm setback, material: aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.489 mm | 1.464 mm | 1.445 mm | 1.424 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 628 mm | 650 | 671 mm | 692 mm |
| Rake | 41 mm | 42 mm | 43 mm | 42 mm |
| Trail | 93 mm | 91 mm | 90 mm | 91 mm |
| Stack | 563 mm | 577 mm | 591 mm | 605 mm |
| Reach | 378 mm | 394 mm | 409 mm | 425 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 340 mm | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1056 mm | 1078 mm | 1099 mm | 1120 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 649 mm | 689 mm | 740 mm | 778 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

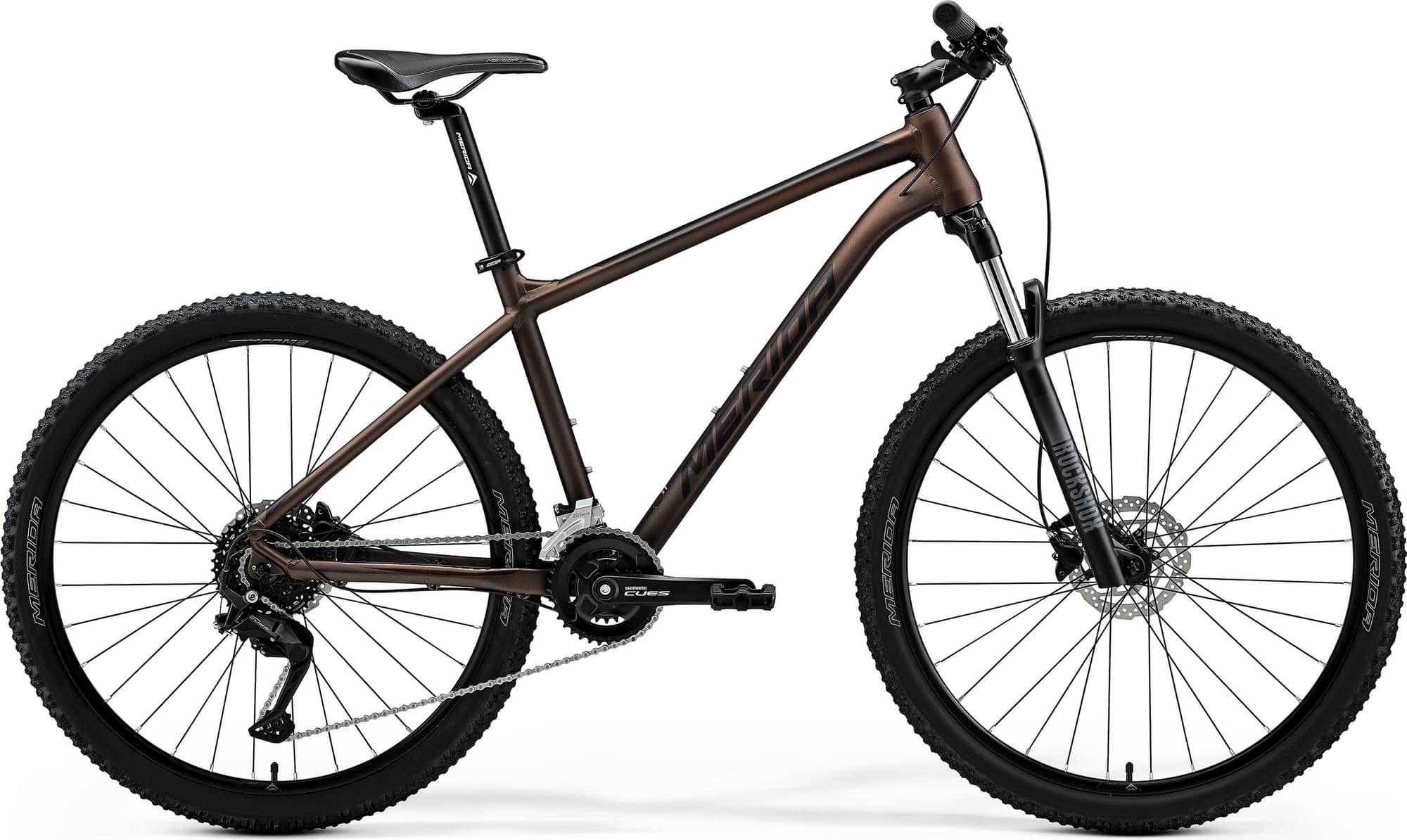

BIG.SEVEN 60 is a Merida Bigseven model. Merida launched 166 bikes of this model so far. Take a sneak peek at all Merida Bigseven bikes models from 2024, by clicking here.
Model range prices
Merida BIG.SEVEN 20 2024 is the most affordable bike of this model and has a price of 577$. On the other hand, Merida BIG.SEVEN 200 2024, is the most expensive and costs 834$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
BIG.SEVEN 60 components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the BIG.SEVEN 60 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
BIG.SEVEN 60 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
