Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS
Suspension Fork
Manitou Machete Comp 100mm travel air fork with tapered steerer, 15mm bolt through axle
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Shift Levers
Shimano SLX 11 speed rapid fire with I-Spec II adapter
Cassette
Sunrace CSMX80, 11 speed, 11-50 teeth
Crank
Shimano SLX 30 teeth
Chain
KMC X11-1
Wheels
Front Hub
Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock
Rear Hub
Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock
Rims
MERIDA BIG.NINE Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 27.5 2.2" folding
Brakes
Brakes
Shimano M315 hydraulic disc, 180mm / 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Expert CC 720mm wide flat
Headset
MERIDA M2331
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 628 mm | 650 | 671 mm | 692 mm |
| Rake | 41 mm | 42 mm | 43 mm | 42 mm |
| Trail | 93 mm | 91 mm | 90 mm | 91 mm |
| Stack | 554 mm | 568 mm | 582 mm | 596 mm |
| Reach | 369 mm | 385 mm | 400 mm | 416 mm |
| Top Tube Length | 541 mm | 561 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 340 mm | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1047 mm | 1069 mm | 1090 mm | 1111 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 640 mm | 680 mm | 731 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

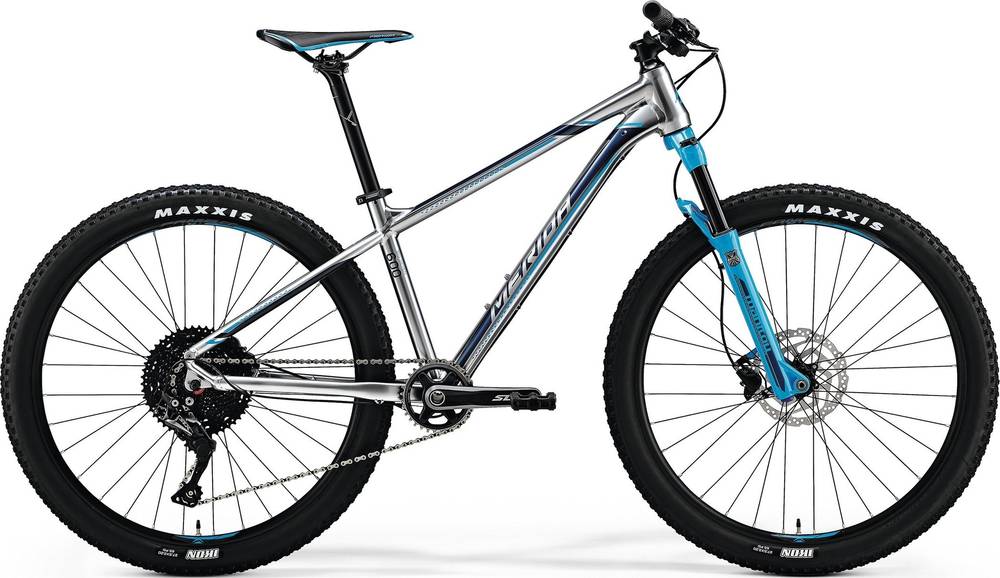

BIG.SEVEN 600 belongs to the Merida Bigseven model. 161 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida BIG.SEVEN 600 it’s weighing 11.67 kg (25.73 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.26% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
The BIG.SEVEN 600 comes factory-installed with the Manitou Machete Comp fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the BIG.SEVEN 600 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.SEVEN 600 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
