Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN LITE
Suspension Fork
Manitou Machete Comp 100mm travel air fork with tapered steerer, 15mm bolt through axle with remote lockout
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT 22 speed rapid fire
Cassette
Shimano M7000, 11 speed, 11-42 teeth
Crank
Shimano XT 34-24 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11-1
Wheels
Front Hub
Shimano Deore, Boost standard, centerlock with 15mm front and 12mm rear bolt through axles
Rear Hub
Shimano Deore, Boost standard, centerlock with 15mm front and 12mm rear bolt through axles
Rims
MERIDA Expert CC, 22.5mm inner width, tubeless ready
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon 27.5 2.2" folding
Brakes
Brakes
Shimano XT hydraulic disc, 180mm / 160mm rotors
Brake Levers
Shimano XT
Cockpit
Handlebar
MERIDA Expert CC 720mm wide flat
Headset
MERIDA M2331
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Front Center | 649 mm | 670 mm | 690 mm | 712 mm |
| Rake | 41 mm | 43 mm | 41 mm | 43 mm |
| Trail | 93 mm | 90 mm | 93 mm | 90 mm |
| Stack | 558 mm | 562 mm | 572 mm | 586 mm |
| Reach | 391 mm | 409 mm | 427 mm | 442 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 342 mm | 381 mm | 444 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1064 mm | 1085 mm | 1105 mm | 1127 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 660 mm | 694 mm | 748 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

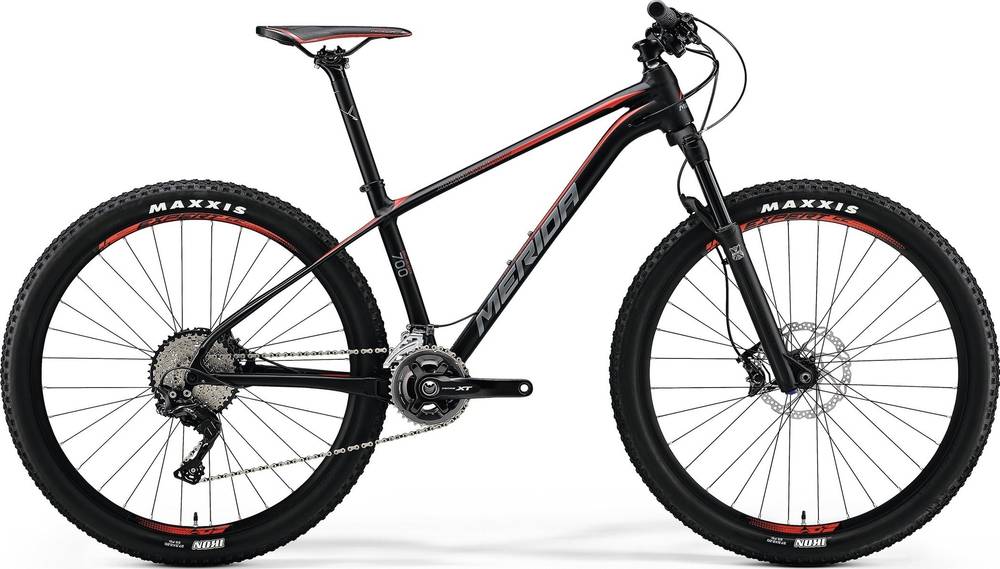

About this model
BIG.SEVEN 700 is part of the Merida Bigseven model. There are 161 bikes that carry this model name. You can easily view all of the Merida Bigseven bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.65 kg (25.68 lbs), the BIG.SEVEN 700 model is a bit lighter than average. In short, the average Crosscountry bike weight is 6.44% higher than this one.
BIG.SEVEN 700 components
Fork
The BIG.SEVEN 700 comes factory-installed with the Manitou Machete Comp fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the BIG.SEVEN 700 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.SEVEN 700 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
