Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork Fox Performance Float 32 -
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN LITE
Suspension Fork
FOX 32 FLOAT Performance 27"
Drivetrain
Rear Derailleur
Shimano SLX SGS Shadow+
Front Derailleur
Shimano Deore double
Shift Levers
Shimano SLX ispec
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano SLX 38-24 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rear Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rims
DT Swiss 466D-27
Spokes
Black stainless
Tires
Continental Race-King 27 2.2 fold
Brakes
Brakes
Shimano M615 180 cen / Shimano M615 160 cen
Cockpit
Handlebar
MERIDA pro OS 700 R12
Headset
FSA No.55 EP
Seat
Saddle
Prologo Kappa 3
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.48 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 619 mm | 630 mm | 639 mm | 649 mm | 659 mm | 658 mm | 668 mm |
| Rake | 42 mm | 43 mm | 43 mm | 42 mm | 41 mm | 42 mm | 42 mm |
| Trail | 81 mm | 80 mm | 77 mm | 78 mm | 79 mm | 75 mm | 75 mm |
| Stack | 576 mm | 581 mm | 588 mm | 597 mm | 607 mm | 618 mm | 628 mm |
| Reach | 377 mm | 385 mm | 397 mm | 405 mm | 412 mm | 412 mm | 419 mm |
| Top Tube Length | 549 mm | 559 mm | 579 mm | 589 mm | 599 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1034 mm | 1045 mm | 1054 mm | 1064 mm | 1074 mm | 1073 mm | 1083 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 658 mm | 691 mm | 728 mm | 760 mm | 793 mm | 822 mm | 852 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model

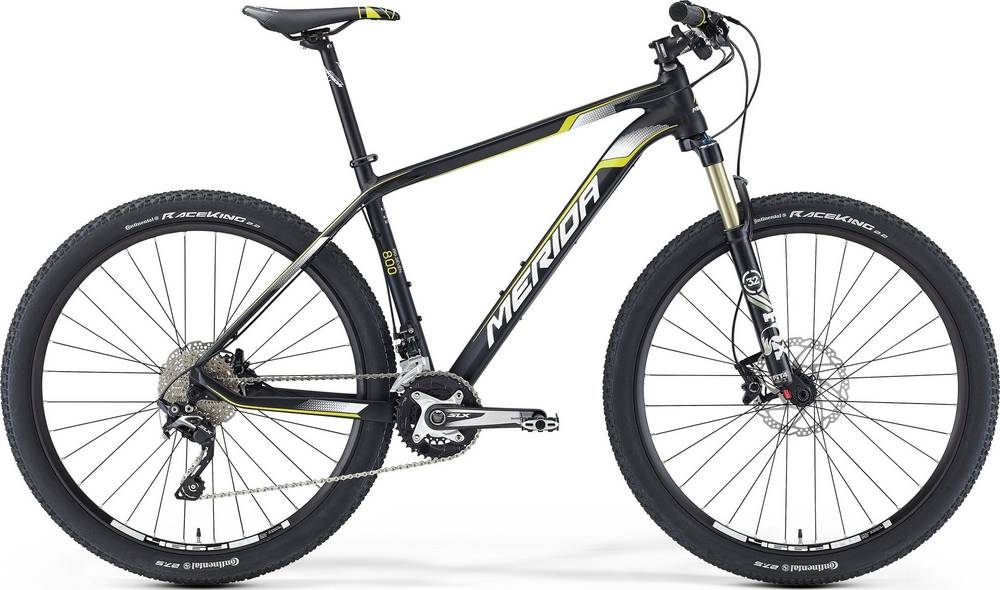

BIG.SEVEN 800 is a Merida Bigseven model. Merida launched 161 bikes of this model so far. You can easily view all of the Merida Bigseven bikes models from 2016, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida BIG.SEVEN 800 it’s weighing 12.4 kg (27.34 lbs). At this weight, is equally heavier with average. In conclusion, the average Crosscountry bike weighs 0% less than BIG.SEVEN 800.
BIG.SEVEN 800 components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Merida BIG.SEVEN 800 2016, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.SEVEN 800 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
