Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork Fox Performance Float 32 -
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN LITE
Suspension Fork
FOX 32 FLOAT Performance 27"
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT-i
Cassette
Shimano XT 11-40 11s
Crank
Shimano XT 38-28 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano XT 15 cen / Shimano XT 12-cen
Rear Hub
Shimano XT 15 cen / Shimano XT 12-cen
Rims
DT Swiss 466D-27
Spokes
Black stainless
Tires
Maxxis Ikon 27.5 2.2 fold
Brakes
Brakes
Shimano XT-Fin 180 cen ice / Shimano XT-Fin 160 cen ice J
Cockpit
Handlebar
MERIDA pro OS 700 R12
Headset
FSA No.55 EP
Seat
Saddle
Selle Italia SL
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.48 mm | 1.47 mm | 1.47 mm | 1.5 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 619 mm | 630 mm | 639 mm | 649 mm | 659 mm | 658 mm | 668 mm |
| Rake | 42 mm | 43 mm | 43 mm | 42 mm | 41 mm | 42 mm | 42 mm |
| Trail | 81 mm | 80 mm | 77 mm | 78 mm | 79 mm | 75 mm | 75 mm |
| Stack | 576 mm | 581 mm | 588 mm | 597 mm | 607 mm | 618 mm | 628 mm |
| Reach | 377 mm | 385 mm | 397 mm | 405 mm | 412 mm | 412 mm | 419 mm |
| Top Tube Length | 549 mm | 559 mm | 579 mm | 589 mm | 599 mm | 609 mm | 619 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1034 mm | 1045 mm | 1054 mm | 1064 mm | 1074 mm | 1073 mm | 1083 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 658 mm | 691 mm | 728 mm | 760 mm | 793 mm | 822 mm | 852 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

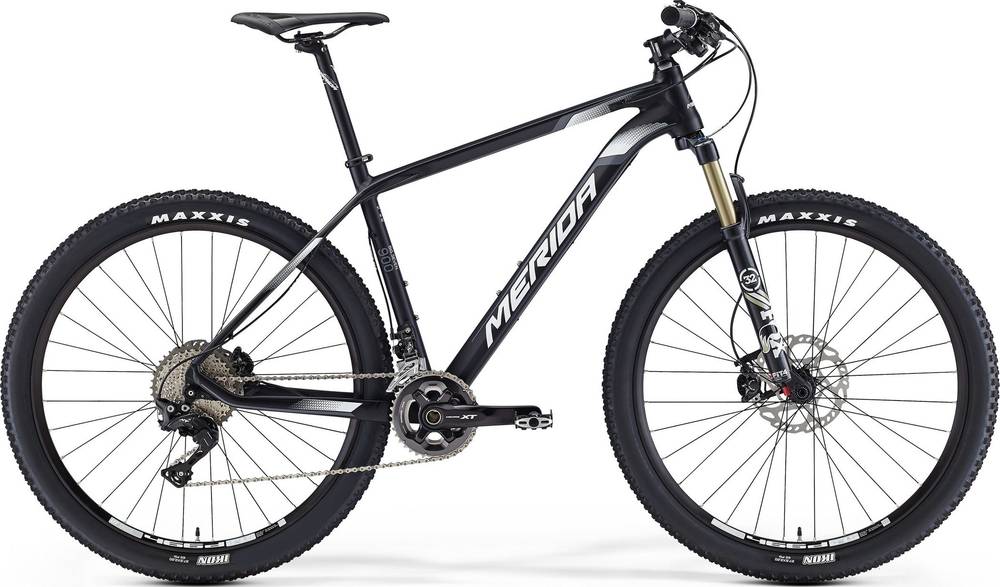

BIG.SEVEN 900 is a Merida Bigseven model. Merida released 161 bikes variations of this model so far. You can easily view all of the Merida Bigseven bikes models from 2016, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.6 kg (25.57 lbs), Merida bike is a bit lighter than average. To sum up, it’s 6.9% lighter than the average weight of Crosscountry bikes.
BIG.SEVEN 900 components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the BIG.SEVEN 900 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.SEVEN 900 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
