Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN CF5
Suspension Fork
Rock Shox SID XX-27 SA 15mm 100 Xlock taper
Drivetrain
Rear Derailleur
SRAM XX1 11s
Front Derailleur
no
Shift Levers
no / SRAM XX1 trigger
Cassette
SRAM XG-11s 10-42
Crank
SRAM XX1 34 BB30
Bottom Bracket
attached
Chain
KMC X11 11s
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Red Power HP 27 F15-R12 disc
Tires
Maxxis Crossmark 27 Exception 2.1
Brakes
Brakes
SRAM XX 180 disc / SRAM XX 160 disc CJ
Brake Levers
attached
Cockpit
Handlebar
PRC Team Flatbar 700
Headset
Big Conoid A-bearing neck
Seat
Saddle
Prologo Nago Evo X10 TiroX
Seatpost
PRC Double carbon superlite 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 18.5" | 20" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.48 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 632 mm | 640 mm | 652 mm | 662 mm | 660 mm |
| Rake | 44 mm | 43 mm | 45 mm | 45 mm | 44 mm |
| Trail | 79 mm | 77 mm | 75 mm | 75 mm | 73 mm |
| Stack | 586 mm | 595 mm | 604 mm | 612 mm | 624 mm |
| Reach | 389 mm | 401 mm | 408 mm | 415 mm | 416 mm |
| Top Tube Length | 563 mm | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 100 mm | 107 mm | 117 mm | 125 mm | 125 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1051 mm | 1059 mm | 1071 mm | 1081 mm | 1079 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 736 mm | 779 mm | 806 mm | 848 mm | 878 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

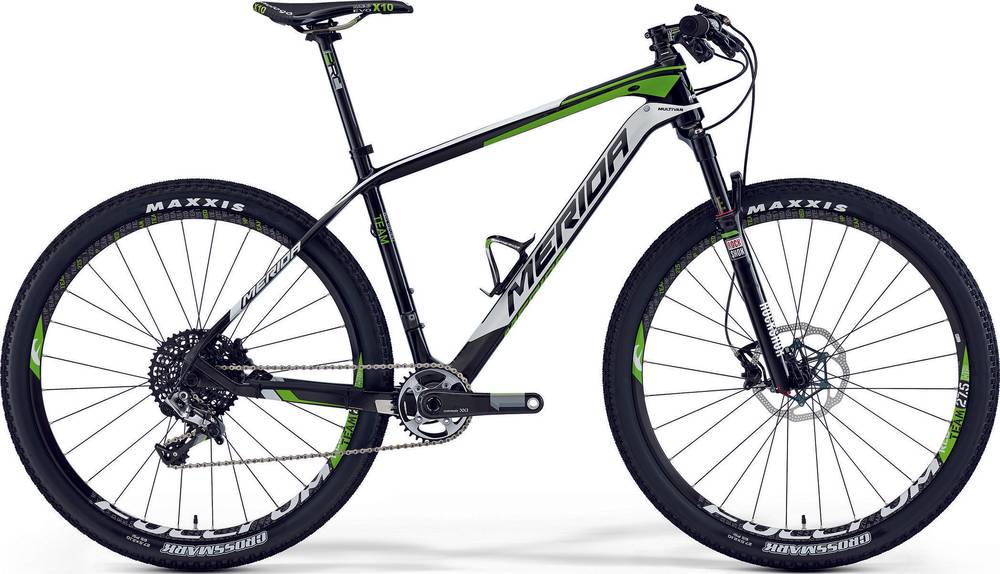

Big.Seven Team is a Merida Bigseven model. Merida launched 161 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Merida Big.Seven Team 2015, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Big.Seven Team has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
