Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Groupset GX, SRAM -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN LITE
Suspension Fork
FS RBA RL 27 15 SA100 oneloc
Drivetrain
Rear Derailleur
SRAM GX 1 A1
Shift Levers
SRAM GX 11
Cassette
SRAM XG-1150-A1 10-42
Crank
SRAM GX1000 32T boost
Chain
KMC X11-1
Wheels
Front Hub
FoBearing disc 15 / FoBearing disc boost XD
Rear Hub
FoBearing disc 15 / FoBearing disc boost XD
Rims
MERIDA Expert CC
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon 27.5 2.2 fold
Brakes
Brakes
SRAM Level T Centerline 180 PM / SRAM Level T Centerline 160 PM Stealth-a-majig
Brake Levers
SRAM Level T
Cockpit
Handlebar
MERIDA Expert OS 720 R12
Headset
Big Conoid A-bearing neck
Seat
Saddle
Prologo Kappa 3
Seatpost
MERIDA Expert SB0 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Front Center | 649 mm | 670 mm | 690 mm | 712 mm |
| Rake | 41 mm | 39 mm | 37 mm | 43 mm |
| Trail | 93 mm | 95 mm | 97 mm | 90 mm |
| Stack | 558 mm | 572 mm | 582 mm | 586 mm |
| Reach | 391 mm | 409 mm | 427 mm | 442 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 342 mm | 381 mm | 444 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1064 mm | 1085 mm | 1105 mm | 1127 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 660 mm | 694 mm | 748 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

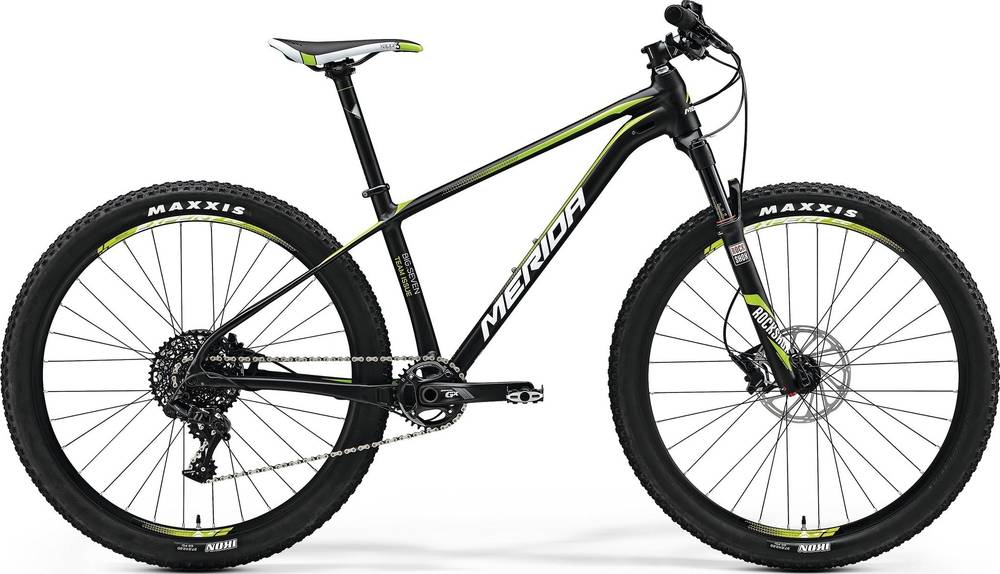

BIG.SEVEN TEAM ISSUE is a Merida Bigseven model. Merida released 161 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 11.26 kg (24.82 lbs), the BIG.SEVEN TEAM ISSUE model is considerably lighter than average. To sum up, it’s 10.12% lighter than the average weight of Crosscountry bikes.
BIG.SEVEN TEAM ISSUE components
Wheels size
When it comes to wheels, the BIG.SEVEN TEAM ISSUE bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
