Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS
Suspension Fork
Rock Shox 30G RL R 27 Q SA 100 DFBS 46T AIR Remote
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT-i / Shimano XT-i-11
Cassette
Shimano M7000-11 11-42
Crank
Shimano: XT 36-26
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA Big 7 comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 27.5 2.2 fold
Brakes
Brakes
Shimano M506 180 cen / Shimano M506 160 cen J
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert OS 720 R12
Headset
Big Conoid Semi Neck
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 20" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.51 mm | 1.48 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 619 mm | 629 mm | 639 mm | 659 mm | 658 mm |
| Rake | 42 mm | 42 mm | 43 mm | 41 mm | 42 mm |
| Trail | 81 mm | 81 mm | 77 mm | 79 mm | 75 mm |
| Stack | 576 mm | 581 mm | 588 mm | 607 mm | 618 mm |
| Reach | 377 mm | 385 mm | 397 mm | 412 mm | 412 mm |
| Top Tube Length | 549 mm | 559 mm | 579 mm | 599 mm | 609 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 508 mm | 546 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1039 mm | 1049 mm | 1059 mm | 1079 mm | 1078 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 657 mm | 692 mm | 735 mm | 798 mm | 827 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

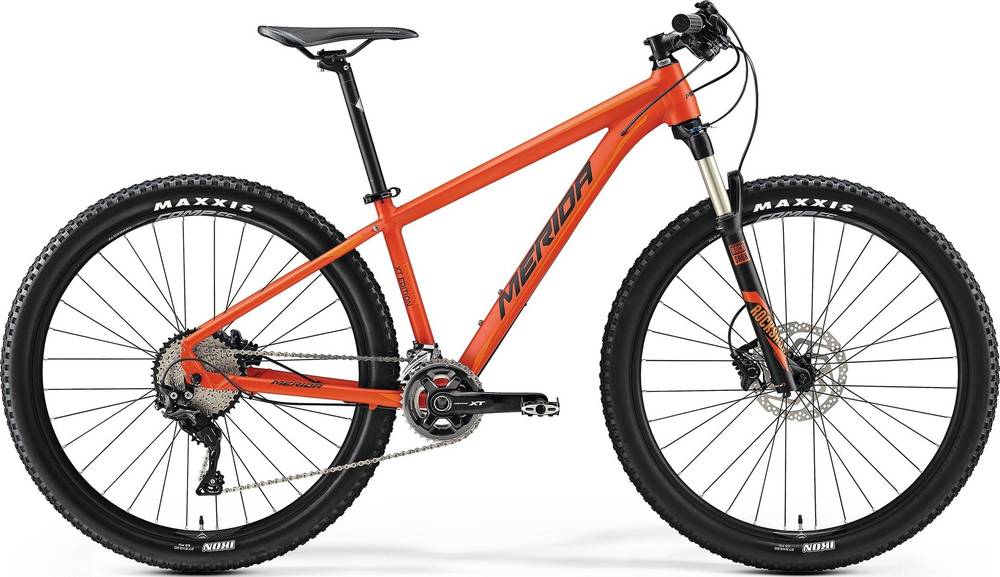

BIG.SEVEN XT-EDITION is a Merida Bigseven model. There are 161 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, BIG.SEVEN XT-EDITION has a weight of 12.31 kg (27.14 lbs). In short, the average Crosscountry bike weight is 0.73% higher than this one.
Overview of components
Wheels
When it comes to wheels, the BIG.SEVEN XT-EDITION bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.SEVEN XT-EDITION has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
