Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS
Suspension Fork
Manitou Machete Comp, Air, 100mm suspension travel, Tapered, Remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano M7000, 11-42 teeth, 11 speed
Crank
Shimano XT, 36-26 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Chain Guide
N/A
Pedals
VP VPE-891
Wheels
Front Hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock
Rear Hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2", fold
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert CC, 31.8mm diameter, 6° stem angle
Handlebar
MERIDA Expert CC, 720mm width, 10mm rise
Grips
Merida Comp EC
Headset
MERIDA M2339 Neck, 2191025950
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA Comp CC, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 628 mm | 650 | 671 mm | 692 mm |
| Rake | 41 mm | 42 mm | 43 mm | 42 mm |
| Trail | 93 mm | 91 mm | 90 mm | 91 mm |
| Stack | 554 mm | 568 mm | 582 mm | 596 mm |
| Reach | 369 mm | 385 mm | 400 mm | 416 mm |
| Top Tube Length | 541 mm | 561 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 340 mm | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1047 mm | 1069 mm | 1090 mm | 1111 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 640 mm | 680 mm | 731 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

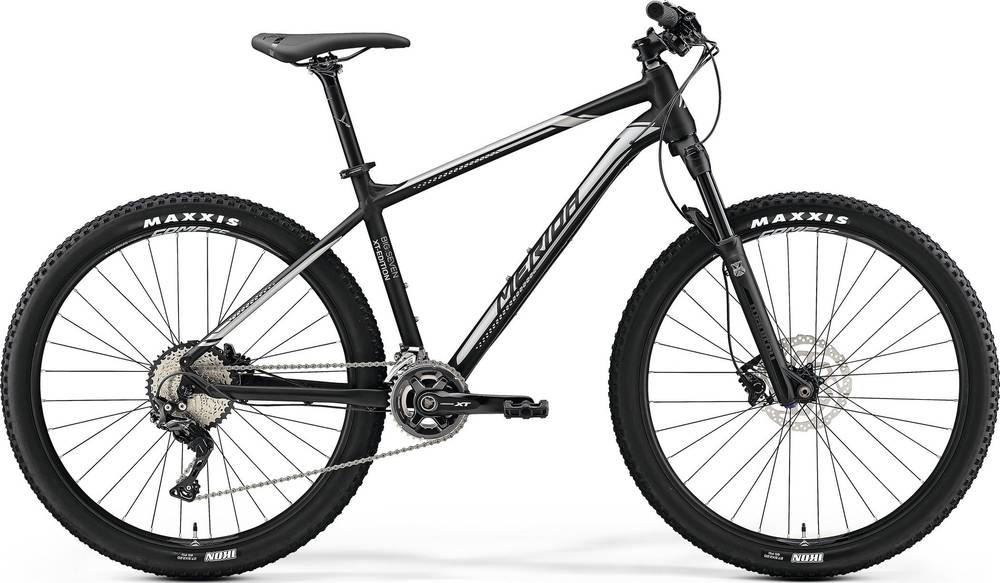

BIG.SEVEN XT-EDITION is a Merida Bigseven model. Merida launched 161 bikes of this model so far. Take a sneak peek at all Merida Bigseven bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.89 kg (26.21 lbs), the BIG.SEVEN XT-EDITION model is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 4.29% more than BIG.SEVEN XT-EDITION.
Overview of components
Fork
Merida BIG.SEVEN XT-EDITION 2019 bike is equipped with the Manitou Machete Comp fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The BIG.SEVEN XT-EDITION 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.SEVEN XT-EDITION comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
