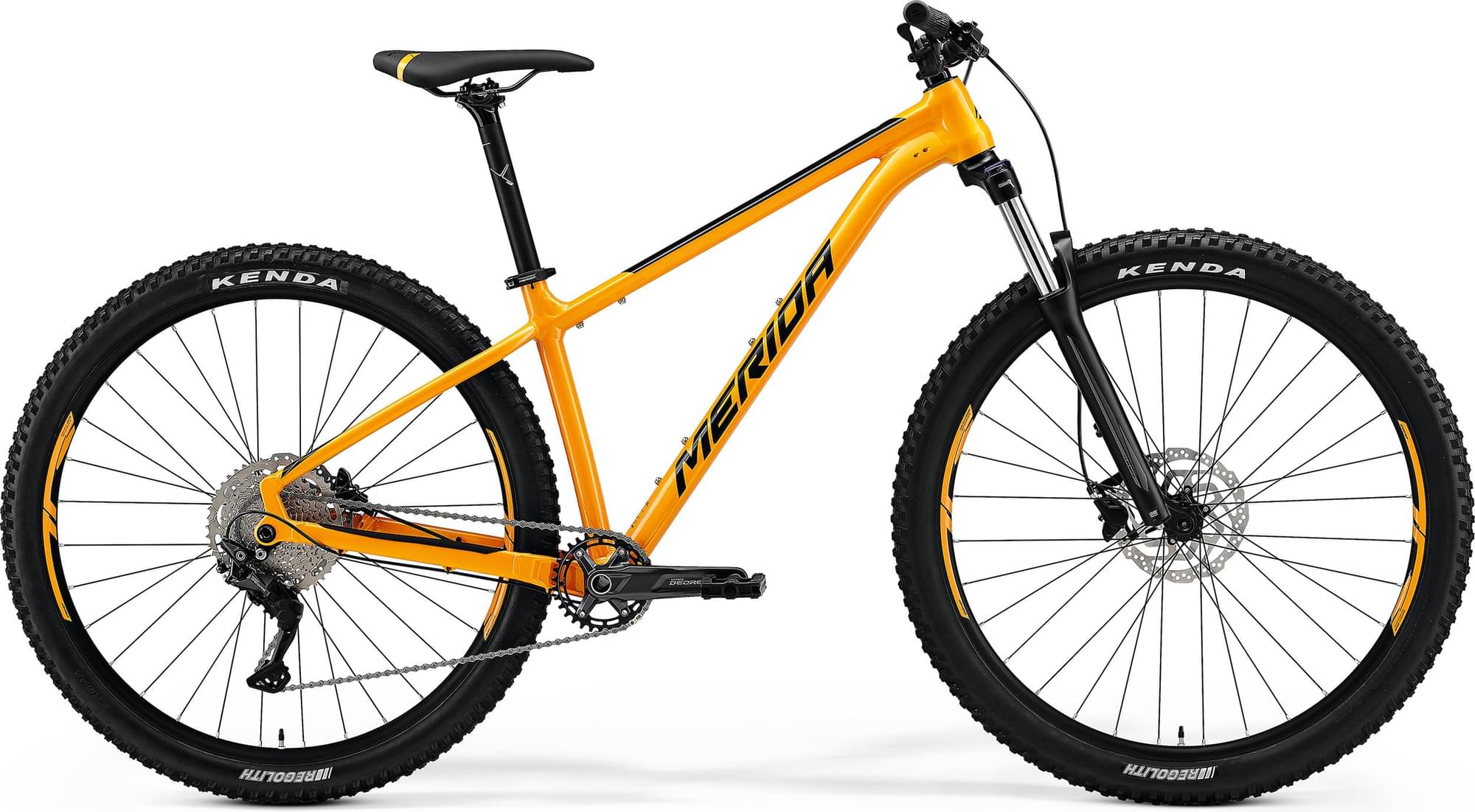

Merida BIG.TRAIL 200 2021
2021 Mountain
Estimate price |
921$
Weight | 14.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.TRAIL TFS, material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour XCM32 DS, Coil, 120mm suspension travel, Lockout, 46mm fork offset, 29x2.4" max. wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120 Shadow+, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano Deore M4100, 11-46 teeth, 10 speed
Crank
Shimano Deore M5100, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Shimano MT400, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Kenda Regolith, 29x2.4", wire
Brakes
Brakes
Tektro M275, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 740mm width, 10mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.43 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 723 mm | 745 mm | 769 mm | 793 mm | 818 mm |
| Rake | 41 mm | 41 mm | 41 mm | 41 mm | 41 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 633 mm | 638 mm | 647 mm | 656 mm | 656 mm |
| Reach | 412 mm | 432 mm | 452 mm | 472 mm | 497 mm |
| Top Tube Length | 576 mm | 597 mm | 619 mm | 642 mm | 667 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 410 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1147 mm | 1169 mm | 1193 mm | 1217 mm | 1242 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 713 mm | 720 mm | 722 mm | 725 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
BIG.TRAIL 200 completes the Merida Bigtrail model. Merida launched 20 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Merida BIG.TRAIL 200 2021 is the cheapest bike model and costs 827$. Merida BIG.TRAIL 600 2021 is the most expensive one and costs 2007$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2021 and its price was 827$. Doing a quick comparison, we notice that BIG.TRAIL 200 price is 233.98% lower than the average cost of a Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida BIG.TRAIL 200 it’s weighing 14.24 kg (31.39 lbs). At this weight, is a bit heavier than average. In short, the average Trail bike weight is 9.71% lower than this one.
Overview of components
Fork
This bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the BIG.TRAIL 200 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.TRAIL 200 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
