Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.TRAIL
Suspension Fork
Rock Shox Sektor RL, Air 130mm suspension travel, Tapered
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
no / SRAM NX Eagle
Cassette
SRAM NX 1230 Eagle, 11-50 teeth, 12 speed
Crank
SRAM NX Eagle, 30 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM NX Eagle
Chain Guide
MRP 1X CS
Pedals
None included
Wheels
Front Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert TP, 38 mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Rekon, 27.5x2.8", fold, TR EXO 3C
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-500
Cockpit
Stem
Merida Expert TR, 35mm diameter, 0° stem angle, 40mm length
Handlebar
MERIDA Expert TR, 780mm width, 20mm rise
Grips
Merida Comp EC
Headset
MERIDA M2333 neck, 2191025648
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, S: 100mm travel seatpost - M/L/XL 125mm travel seatpost,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.47 mm | 1.42 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 702 mm | 725 mm | 749 mm | 773 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm |
| Trail | 92 mm | 93 mm | 92 mm | 92 mm |
| Stack | 644 mm | 654 mm | 663 mm | 672 mm |
| Reach | 412 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 669 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1130 mm | 1153 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 669 mm | 706 mm | 739 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

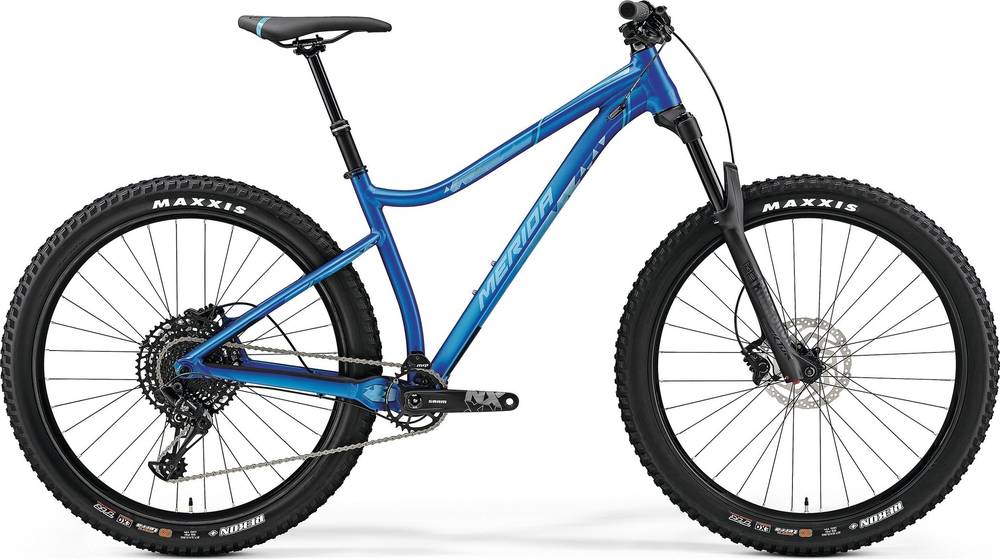

BIG.TRAIL 600 is part of the Merida Bigtrail model. Merida released 20 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida BIG.TRAIL 600 it’s weighing 13.61 kg (30 lbs). At this weight, is slightly heavier than average. To sum up, it’s 4.85% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the RockShox Sektor fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the BIG.TRAIL 600 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.TRAIL 600 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the BIG.TRAIL 600. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
