Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT
Suspension Fork
Suntour SR NEX 63
Drivetrain
Rear Derailleur
Shimano Altus 8
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41 fire
Cassette
Shimano MF-TZ21 14-28
Crank
Shimano M131 48-38-28 CG (BSA)
Bottom Bracket
BSA, threaded
Chain
7s
Wheels
Front Hub
OV alloy
Rear Hub
OV alloy
Rims
MERIDA V
Spokes
ucp steel
Tires
Cross 700 40C
Brakes
Brakes
V-Brake Linear
Cockpit
Handlebar
MERIDA Steel 660 R30
Headset
FSA B52s
Seat
Saddle
Cross Sport
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.59 mm | 1.57 mm | 1.57 mm | 1.55 mm | 1.55 mm | 1.57 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 66 mm | 66 mm | 64 mm | 64 mm | 66 mm | 62 mm | 60 mm | 49 mm |
| Trail | 50 mm | 50 mm | 49 mm | 49 mm | 44 mm | 48 mm | 50 mm | 59 mm |
| Stack | 590 mm | 590 mm | 592 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 370 mm | 370 mm | 376 mm | 383 mm | 390 mm | 396 mm | 406 mm | 416 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 723 mm | 740 mm | 755 mm | 786 mm | 810 mm | 837 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

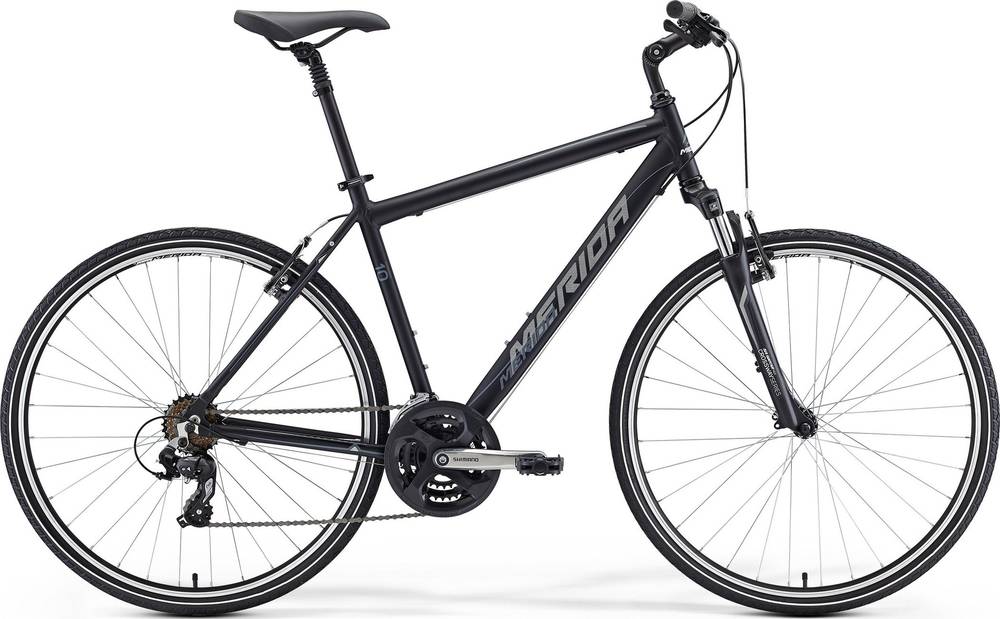

CROSSWAY 10-V belongs to the Merida Crossway model. There are 210 bikes that carry this model name. You can easily view all of the Merida Crossway bikes models from 2016, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.3 kg (29.32 lbs), Merida bike is slightly lighter than average. In other words, this model is 4.14% lighter than the average Hybrid bike.
CROSSWAY 10-V components
Fork
The CROSSWAY 10-V comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on CROSSWAY 10-V are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY 10-V comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
