Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Travel Rear 63mm -
Fork Suntour NEX
-
Groupset Altus, Tourney -
Suspension Full -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT, 63 mm suspension travel, material: aluminium, 700x42C max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX, Coil, 63 mm suspension travel, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY510
Shift Levers
Shimano ST-EF500
Cassette
Shimano MF-TZ500
Crank
Shimano TY301
Bottom Bracket
BSA, threaded
Chain
KMC NS8
Pedals
VP VPE-891
Wheels
Front Hub
Joytech JY-751DSE
Rear Hub
Joytech JY-752DSE
Rims
MERIDA CC
Spokes
Steel UCP
Tires
MERIDA K1171
Brakes
Brakes
Promax. MTV-117A
Cockpit
Handlebar
MERIDA CC
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.509 mm | 1.504 mm | 1.476 mm | 1.494 mm | 1.522 mm | 1.6 mm |
| Front Center | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 51 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 63 mm | 65 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 597 mm | 599 mm | 609 mm | 611 mm | 620 mm | 644 mm | 675 mm |
| Reach | 394 mm | 397 mm | 405 mm | 414 mm | 415 mm | 423 mm | 422 mm |
| Top Tube Length | 565 mm | 575 mm | 585 mm | 595 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1073 mm | 1072 mm | 1082 mm | 1087 mm | 1091 mm | 1107 mm | 1110 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 711 mm | 727 mm | 743 mm | 774 mm | 798 mm | 825 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

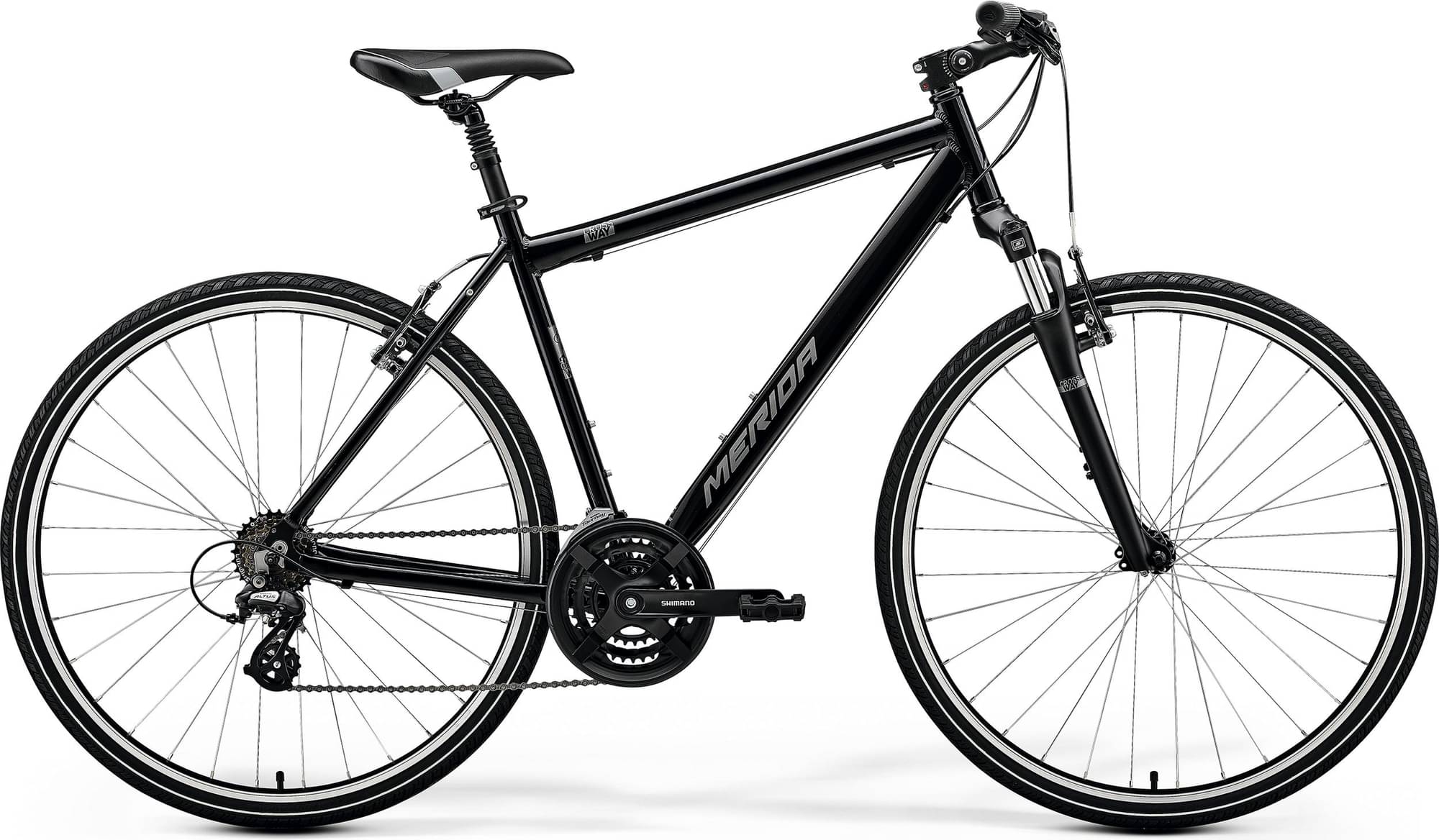

CROSSWAY 10-V is part of the Merida Crossway model. 220 bikes variations carry this model name so far. Take a sneak peek at all Merida Crossway bikes models from 2024, by clicking here.
Model range prices
Merida CROSSWAY 10-V 2024 is the cheapest bike model and costs 513$. Merida CROSSWAY L 100 2024 is the most expensive one and costs 706$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 513$. Comparing this to the average Hybrid bike price, we see that the price is 9.55% lower.
Overview of components
Fork
Merida CROSSWAY 10-V 2024 bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the CROSSWAY 10-V model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY 10-V has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
