Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
Suntour NEX 63mm fork with lockout
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus 27 speed rapid fire shifters
Cassette
Shimano CS-HG200, 9 speed, 11-34 teeth
Crank
Suntour XCR 48-36-26 with chainguard
Chain
KMC M99
Wheels
Front Hub
Shimano Centerlock quick release hubs
Rear Hub
Shimano Centerlock quick release hubs
Rims
MERIDA Comp D
Spokes
Black stainless
Tires
MERIDA Speed 40c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc, 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2346
Seat
Saddle
Crossway Sport
Seatpost
HL SP-405 Suspension 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.6 mm | 1.62 mm |
| Front Center | 629 mm | 634 mm | 638 mm | 649 mm | 658 mm | 679 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 75 mm | 75 mm | 72 mm | 72 mm | 68 mm | 67 mm |
| Stack | 618 mm | 618 mm | 629 mm | 644 mm | 665 mm | 693 mm |
| Reach | 392 mm | 397 mm | 403 mm | 409 mm | 416 mm | 427 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1087 mm | 1092 mm | 1096 mm | 1107 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 686 mm | 719 mm | 752 mm | 786 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

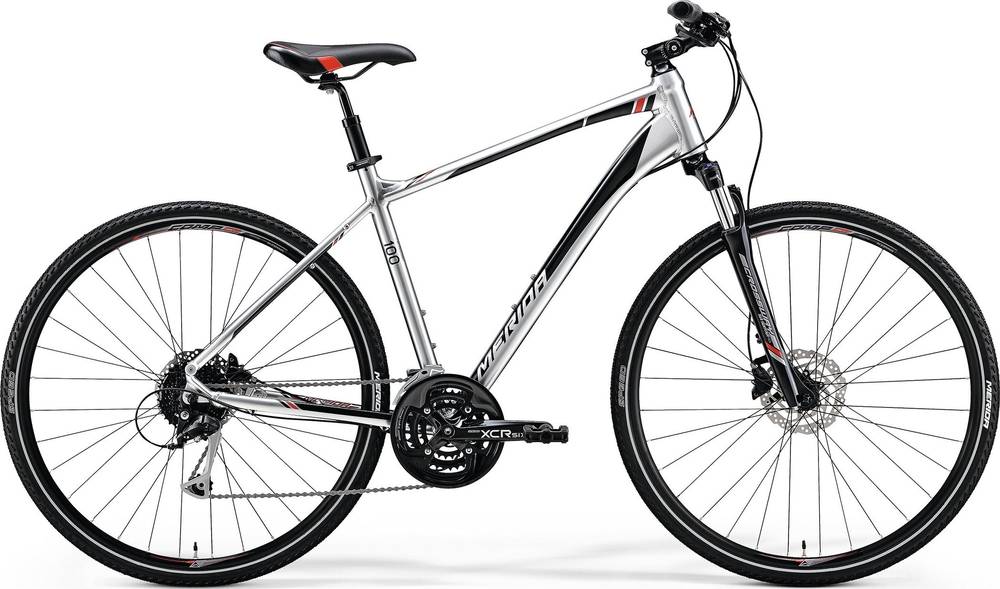

CROSSWAY 100 is a Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.52 kg (29.81 lbs), Merida bike is slightly lighter than average. In conclusion, the average Hybrid bike weighs 2.44% more than CROSSWAY 100.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the CROSSWAY 100 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY 100 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
