Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
Suntour SR NEX HLO 63
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M371 48
Shift Levers
Shimano Altus rapidfire
Cassette
Shimano CS-HG200-9 11-34
Crank
SR XCR 48-36-26 CG (BSA)
Bottom Bracket
BSA, threaded
Chain
KMC X9
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA comp D
Spokes
Black stainless
Tires
MERIDA Speed 40 ref
Brakes
Brakes
Tektro Vela hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
FSA No.11P
Seat
Saddle
Cross Sport
Seatpost
Suspension One D 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 51 mm |
| Trail | 67 mm | 67 mm | 65 mm | 65 mm | 61 mm | 61 mm | 61 mm | 57 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 667 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 697 mm | 722 mm | 738 mm | 755 mm | 785 mm | 809 mm | 837 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

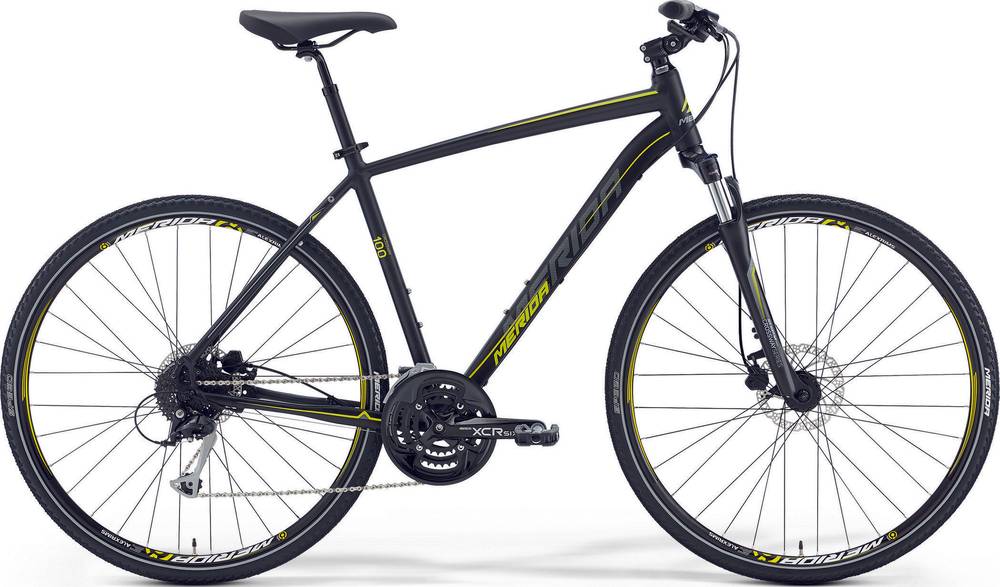

Model Overview
CROSSWAY 100 / -LADY completes the Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.5 kg (29.76 lbs), Merida bike is slightly lighter than average. To sum up, it’s 2.59% lighter than the average weight of Hybrid bikes.
CROSSWAY 100 / -LADY components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the CROSSWAY 100 / -LADY bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY 100 / -LADY has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
