Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX, Coil, 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF500
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
KMC M700
Wheels
Front Hub
Joytech JY-751DSE, 100x9mm width front hub, 32 spoke holes
Rear Hub
Shimano FH-TX500, 135x9mm width rear hub, 32 spoke holes
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Steel UCP
Tires
MERIDA K1171, 700x40C, wire
Brakes
Brakes
Promax MTV-117A
Brake Levers
Shimano ST-EF500
Cockpit
Handlebar
MERIDA CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.52 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 51 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 63 mm | 65 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 590 mm | 590 mm | 592 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 387 mm | 387 mm | 390 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 704 mm | 720 mm | 736 mm | 767 mm | 791 mm | 818 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 153 cm | cm | cm | cm | cm | cm | cm | cm |
Model Overview

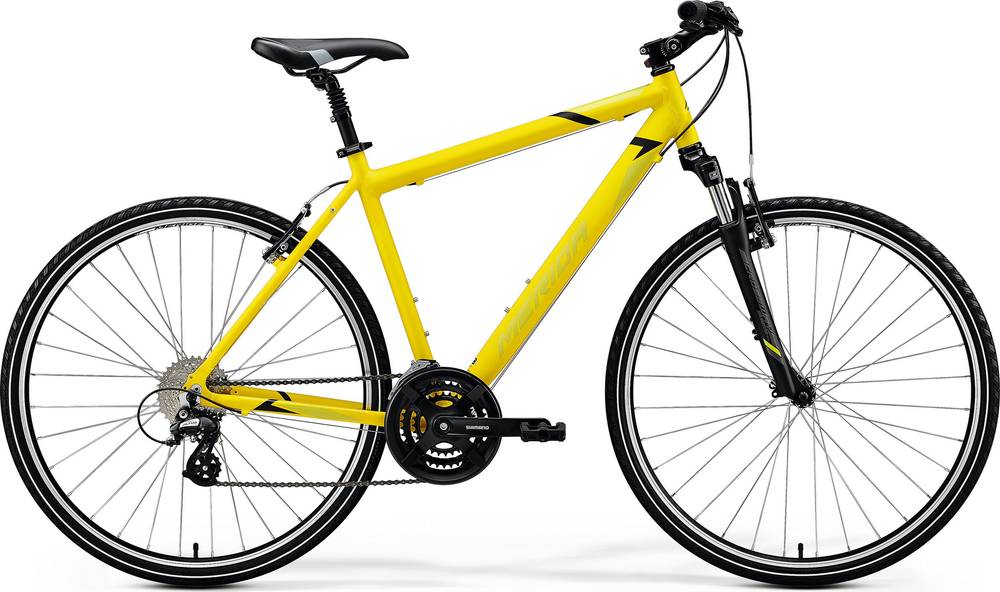

CROSSWAY 15-V is a Merida Crossway model. Merida released 210 bikes variations of this model so far. You can easily view all of the Merida Crossway bikes models from 2020, here.
Model range prices
The most economical model, the Merida CROSSWAY 10-V 2020 has a starting price of 487$. Merida CROSSWAY URBAN 300 2020 on the other hand is the most expensive at 1010$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14.3 kg (31.53 lbs), the CROSSWAY 15-V model is slightly heavier than average. In short, the average Hybrid bike weight is 3.25% lower than this one.
CROSSWAY 15-V components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Merida CROSSWAY 15-V 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
