Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT LADY
Suspension Fork
SR NEX 63
Drivetrain
Rear Derailleur
Shimano Altus 8
Front Derailleur
Shimano TY8s 48
Shift Levers
Shimano EZ fire / 8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 48-38-28 CG
Chain
Chain 8s
Wheels
Front Hub
OV alloy / OV Cassette
Rear Hub
OV alloy / OV Cassette
Rims
MERIDA V
Spokes
ucp steel
Tires
Cross 700 40C
Brakes
Brakes
V-Brake Linear
Brake Levers
Shimano EZ fire
Cockpit
Handlebar
MERIDA Comp 660 R25
Headset
Thread set
Seat
Saddle
Cross lady
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm | 62 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 597 mm | 596 mm | 597 mm | 595 mm | 607 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

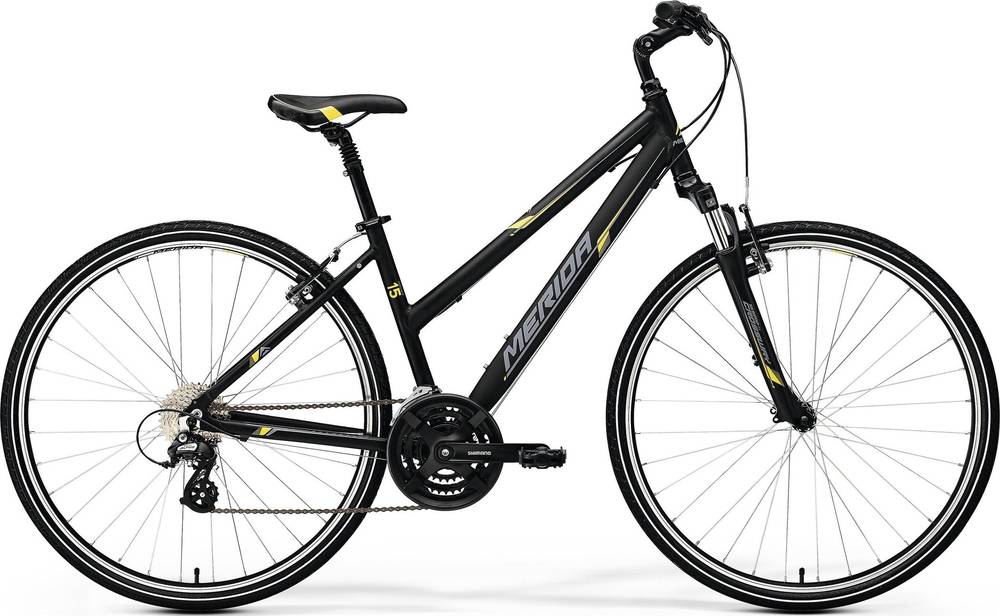

CROSSWAY 15-V LADY is part of the Merida Crossway model. Merida launched 210 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.6 kg (32.19 lbs), Merida bike is a bit heavier than average. To sum up, it’s 5.42% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
The CROSSWAY 15-V LADY comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the CROSSWAY 15-V LADY model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY 15-V LADY has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
