Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crossway-D
Suspension Fork
SR Suntour NEX ML 63
Drivetrain
Rear Derailleur
Shimano Acera-X
Front Derailleur
Shimano M191
Shift Levers
Shimano SL-M310 3 Rapidfire / Shimano SL-M310 8 Rapidfire
Cassette
Shimano CS-HG31-8 11-32
Crank
Shimano M131 48-38-28 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z51 8s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
MERIDA D
Spokes
Steel UCP
Tires
Cross 40C
Brakes
Brakes
ProMax DSK Hydraulic 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
A-Head
Seat
Saddle
Cross
Seatpost
Suspension 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 415 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

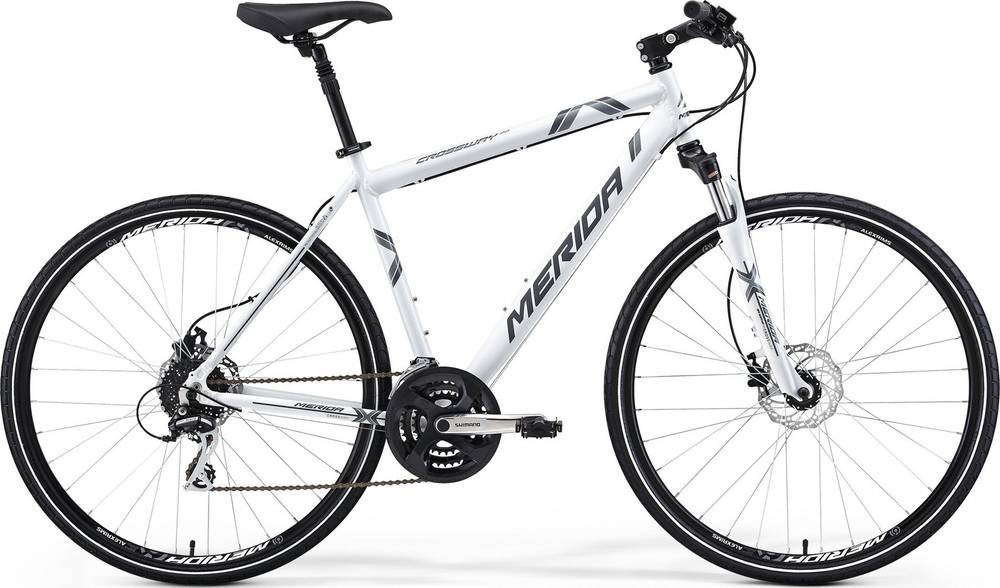

Crossway 20-D is part of the Merida Crossway model. 210 bikes variations carry this model name so far. You can easily view all of the Merida Crossway bikes models from 2014, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.9 kg (30.64 lbs), Merida bike is slightly heavier than average. In other words, this model is 0.36% heavier than the average Hybrid bike.
Overview of components
Fork
The Crossway 20-D comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Crossway 20-D are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Crossway 20-D has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
