Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Acera, Tourney -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
145cm - 160cm
SM
155cm - 170cm
MD
161cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
Suntour NEX HLO
Drivetrain
Rear Derailleur
Shimano RD-M360
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF505
Cassette
Sunrace CSM668
Crank
Shimano TY301
Chain
Sunrace M84
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
MERIDA CC
Spokes
Black steel
Tires
MERIDA K1171
Brakes
Brakes
Shimano ST-EF505
Brake Levers
Shimano ST-EF505
Cockpit
Handlebar
MERIDA CC
Headset
FSA TH888/NO.10
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA CC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.59 mm |
| Front Center | 634 mm | 638 mm | 649 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm |
| Stack | 607 mm | 618 mm | 633 mm |
| Reach | 386 mm | 392 mm | 398 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1081 mm | 1085 mm | 1096 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 708 mm | 741 mm | 775 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 161 cm |
| Rider Max Height | 160 cm | 170 cm | 180 cm |
Model Overview

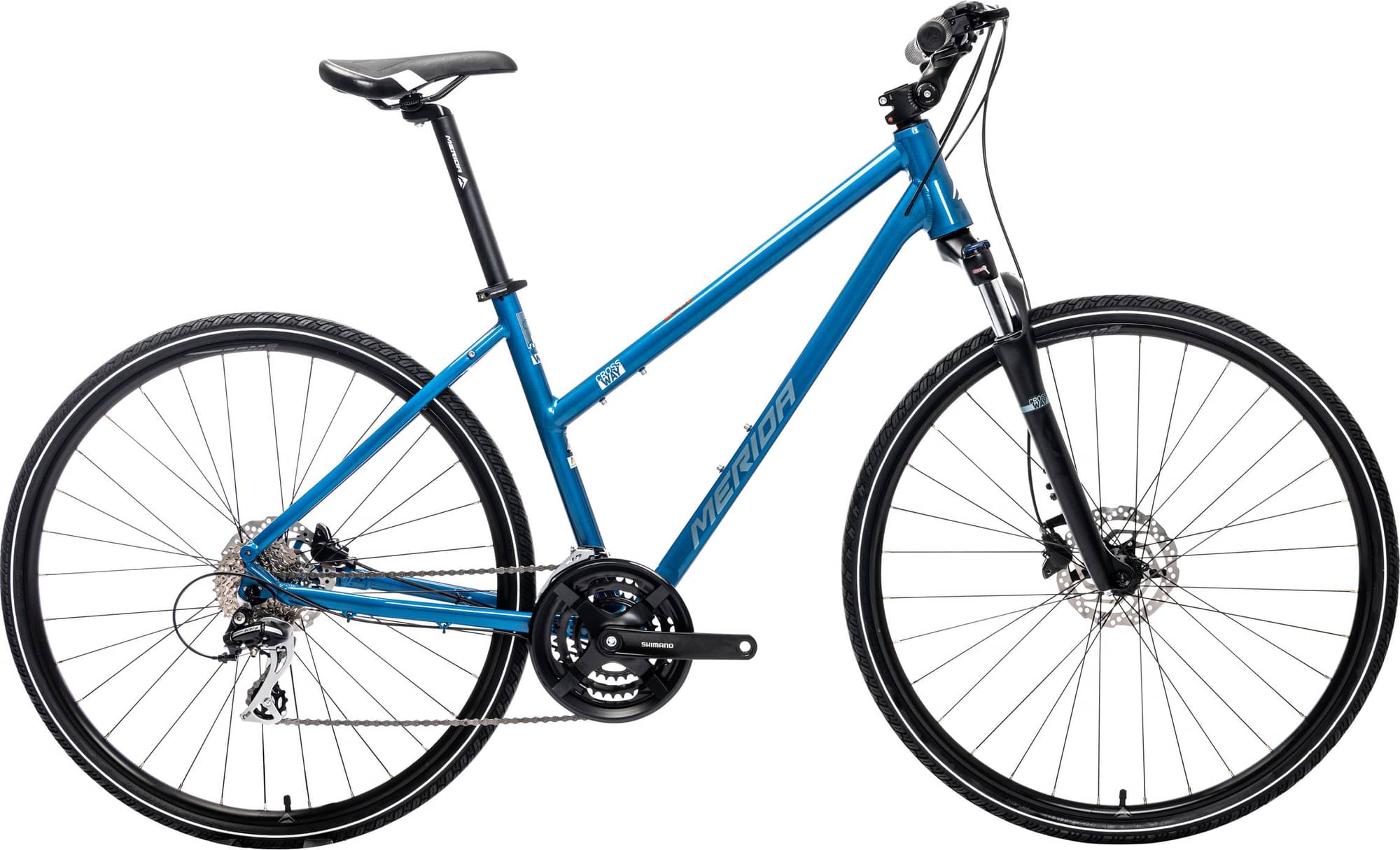

CROSSWAY 20-D (L) is part of the Merida Crossway model. There are 210 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Merida CROSSWAY 10-V 2021 is the cheapest bike model and costs 547$. Merida CROSSWAY 300 2021 is the most expensive one and costs 955$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 560$. Comparing the average cost of a Hybrid bike to this one, you will see that CROSSWAY 20-D (L) price is 0.36% smaller.
CROSSWAY 20-D (L) components
Fork
The Suntour NEX is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the CROSSWAY 20-D (L) model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY 20-D (L) comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Merida CROSSWAY 20-D (L) bike has 3 sizes, in the range of 145 cm – 180 cm (4.76 ft – 5.91 ft). In conclusion, it won’t take much to find one that’s right for you.
