Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crossway-D
Suspension Fork
SR Suntour NEX ML 63
Drivetrain
Rear Derailleur
Shimano Acera-X
Front Derailleur
Shimano M191
Shift Levers
Shimano ST-EF51 3 / Shimano ST-EF51 8
Cassette
Shimano CS-HG31-8 11-32
Crank
Shimano M131 48-38-28 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z51 8s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
MERIDA D
Spokes
Steel UCP
Tires
Cross 40C
Brakes
Brakes
Tektro Novela Mechanical Disc 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
A-Head
Seat
Saddle
Cross
Seatpost
Suspension 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 415 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

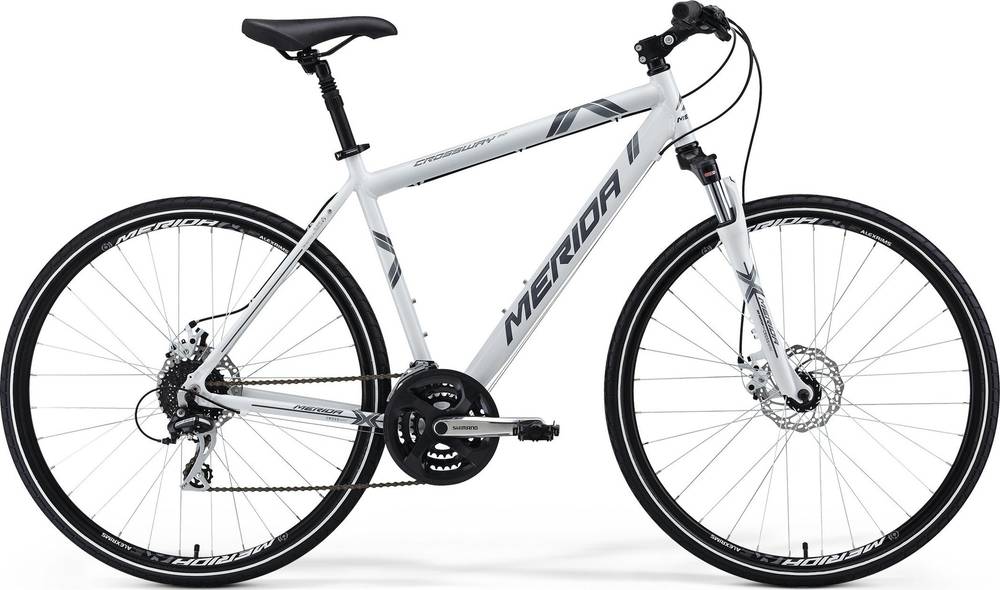

Crossway 20-MD is a Merida Crossway model. Merida launched 210 bikes of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2014, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14 kg (30.86 lbs), Merida bike is slightly heavier than average. To sum up, it’s 1.08% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
Merida Crossway 20-MD 2014 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Crossway 20-MD bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Crossway 20-MD has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
