Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED
Suspension Fork
SR NEX HLO 63
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano TY8s 48
Shift Levers
Shimano EZ fire / 8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 48-38-28 CG
Chain
Chain 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA D
Spokes
ucp steel
Tires
Cross 700 40C
Brakes
Brakes
Promax MTD Mechanical 160
Brake Levers
Shimano EZ fire
Cockpit
Handlebar
MERIDA Comp 660 R25
Headset
Thread Conoid
Seat
Saddle
Cross Sport
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.59 mm | 1.57 mm | 1.57 mm | 1.55 mm | 1.55 mm | 1.57 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 66 mm | 66 mm | 64 mm | 64 mm | 66 mm | 62 mm | 60 mm | 49 mm |
| Trail | 50 mm | 50 mm | 49 mm | 49 mm | 44 mm | 48 mm | 50 mm | 59 mm |
| Stack | 590 mm | 590 mm | 592 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 370 mm | 370 mm | 376 mm | 383 mm | 390 mm | 396 mm | 406 mm | 416 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 723 mm | 740 mm | 755 mm | 786 mm | 810 mm | 837 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

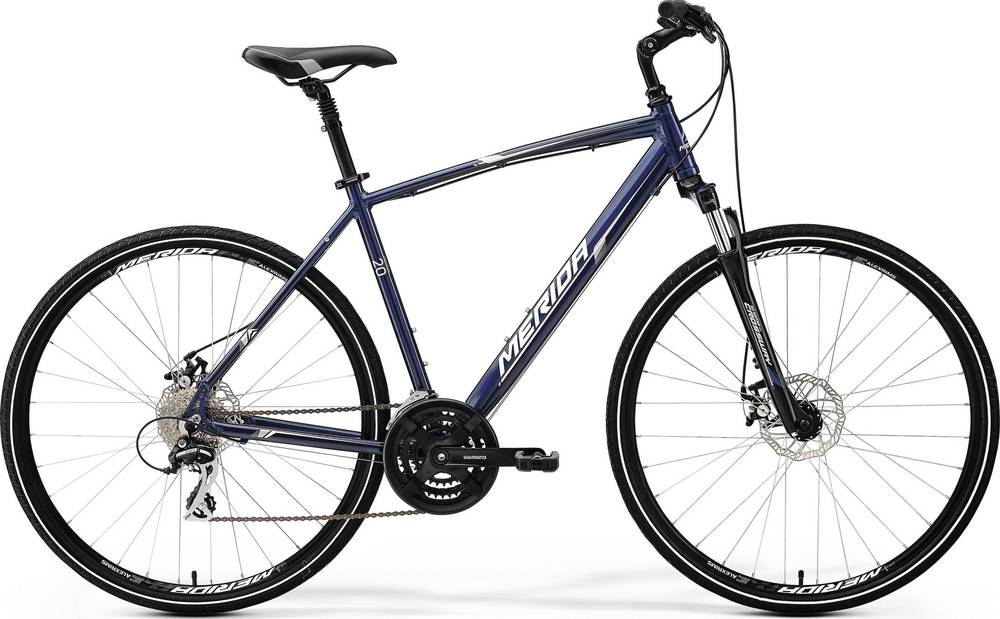

Model Overview
CROSSWAY 20-MD is part of the Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CROSSWAY 20-MD weighs 15.1 kg (33.29 lbs) and is a bit heavier than the average. In other words, this model is 9.03% heavier than the average Hybrid bike.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on CROSSWAY 20-MD are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY 20-MD comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
