Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED LADY
Suspension Fork
SR NEX HLO 63
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano TY8s 48
Shift Levers
Shimano EZ fire / 8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 48-38-28 CG
Chain
Chain 8s
Wheels
Front Hub
OV alloy / OV Cassette
Rear Hub
OV alloy / OV Cassette
Rims
MERIDA V
Spokes
ucp steel
Tires
Cross 700 40C
Brakes
Brakes
V-Brake Linear
Brake Levers
Shimano EZ fire
Cockpit
Handlebar
MERIDA Comp 660 R25
Headset
Thread Conoid
Seat
Saddle
Cross lady
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm | 62 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 597 mm | 596 mm | 597 mm | 595 mm | 607 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

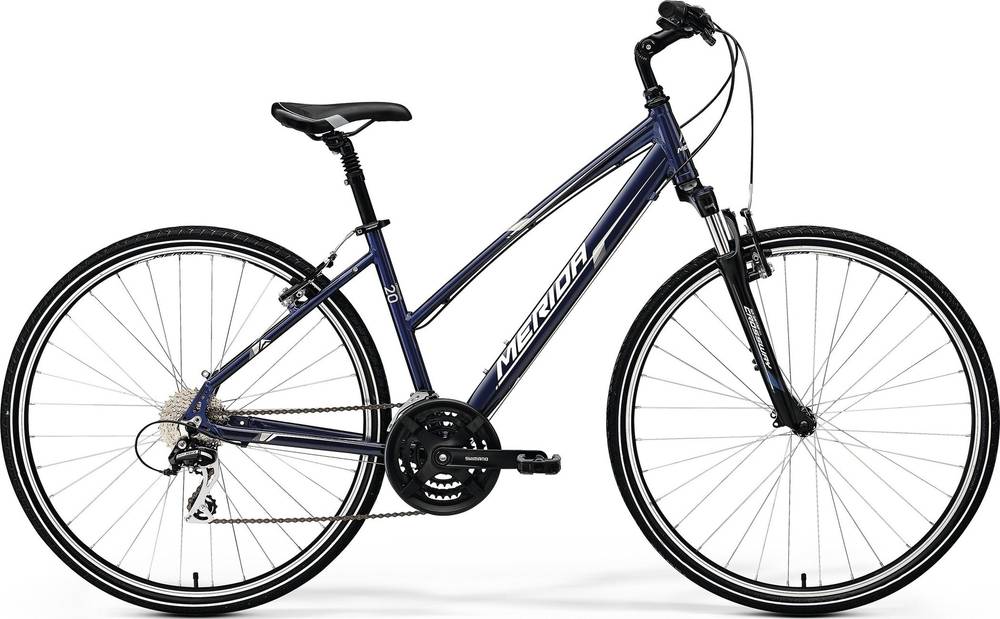

CROSSWAY 20-V LADY completes the Merida Crossway model. Merida released 210 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CROSSWAY 20-V LADY weighs 14.5 kg (31.97 lbs) and is slightly heavier than the average. In short, the average Hybrid bike weight is 4.69% lower than this one.
CROSSWAY 20-V LADY components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Merida CROSSWAY 20-V LADY 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY 20-V LADY has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
