Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
SR NCX-D LO 63
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
FSA Dynadrive 48-36-26 CG
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA comp D
Spokes
Black stainless
Tires
MERIDA Speed 40 ref
Brakes
Brakes
Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
EGG steel neck
Seat
Saddle
Cross Sport
Seatpost
Suspension One D 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 65 mm | 65 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 586 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 388 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 696 mm | 722 mm | 738 mm | 755 mm | 785 mm | 809 mm | 837 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

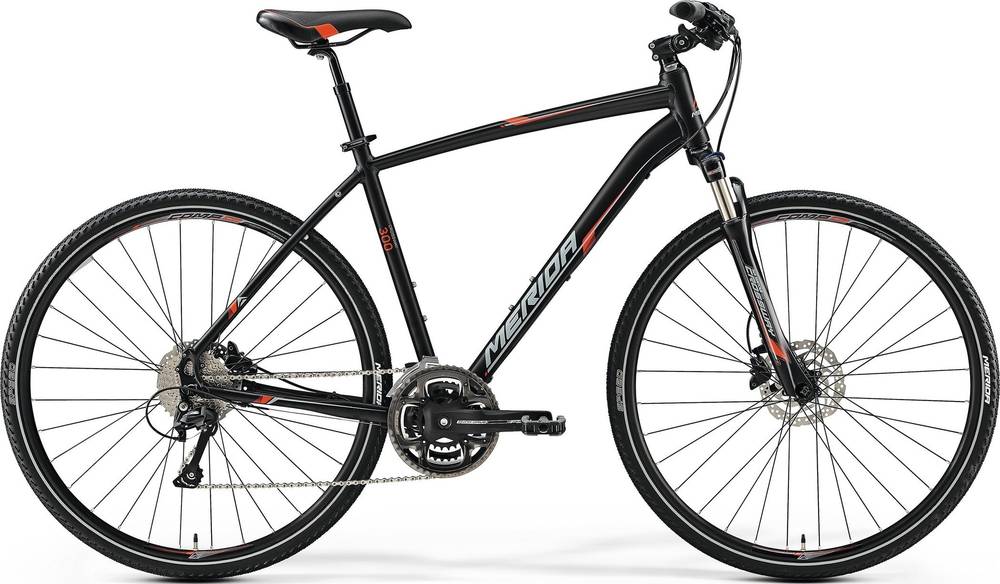

CROSSWAY 300 is part of the Merida Crossway model. Merida launched 210 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.04 kg (28.75 lbs), Merida bike is a bit lighter than average. In short, the average Hybrid bike weight is 6.21% higher than this one.
CROSSWAY 300 components
Fork
This bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the CROSSWAY 300 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY 300 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
