Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS LADY
Suspension Fork
SR NCX-D LO 63
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
FSA Dynadrive 48-36-26 CG
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA comp D
Spokes
Black stainless
Tires
MERIDA Speed 40 ref
Brakes
Brakes
Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
EGG steel neck
Seat
Saddle
Cross lady
Seatpost
Suspension One D 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 636 mm | 637 mm | 647 mm | 651 mm | 661 mm |
| Rake | 48 mm | 50 mm | 50 mm | 49 mm | 50 mm |
| Trail | 69 mm | 67 mm | 67 mm | 65 mm | 61 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 404 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1084 mm | 1085 mm | 1095 mm | 1099 mm | 1109 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 596 mm | 596 mm | 597 mm | 595 mm | 597 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

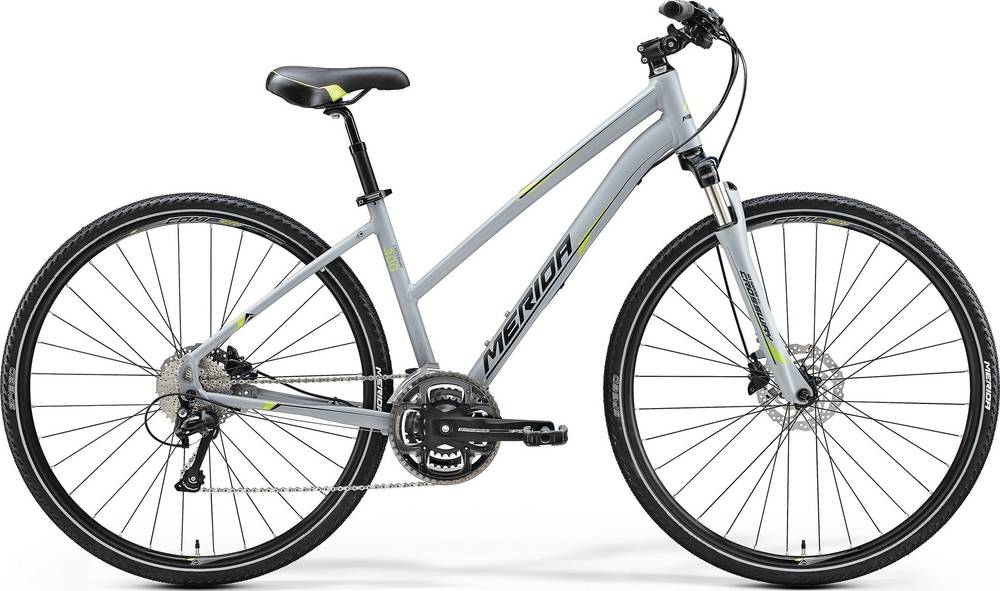

CROSSWAY 300 LADY is part of the Merida Crossway model. Merida launched 210 bikes of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.37 kg (29.48 lbs), Merida bike is slightly lighter than average. In conclusion, the average Hybrid bike weighs 3.59% more than CROSSWAY 300 LADY.
CROSSWAY 300 LADY components
Fork
This bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the CROSSWAY 300 LADY bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY 300 LADY is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
