Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS LADY
Suspension Fork
Suntour NCX D 63mm fork with lockout
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore 30 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
FSA Alfa drive 48-36-26 with chainguard
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock quick release hubs
Rear Hub
Shimano Centerlock quick release hubs
Rims
MERIDA Comp D
Spokes
Black stainless
Tires
MERIDA Speed 40c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc, 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2346
Seat
Saddle
Crossway Sport
Seatpost
HL SP-405 Suspension 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.6 mm |
| Front Center | 629 mm | 634 mm | 638 mm | 649 mm | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 75 mm | 72 mm | 72 mm | 68 mm |
| Stack | 618 mm | 618 mm | 629 mm | 644 mm | 665 mm |
| Reach | 392 mm | 397 mm | 403 mm | 409 mm | 416 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1087 mm | 1092 mm | 1096 mm | 1107 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 657 mm | 657 mm | 657 mm | 658 mm | 658 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

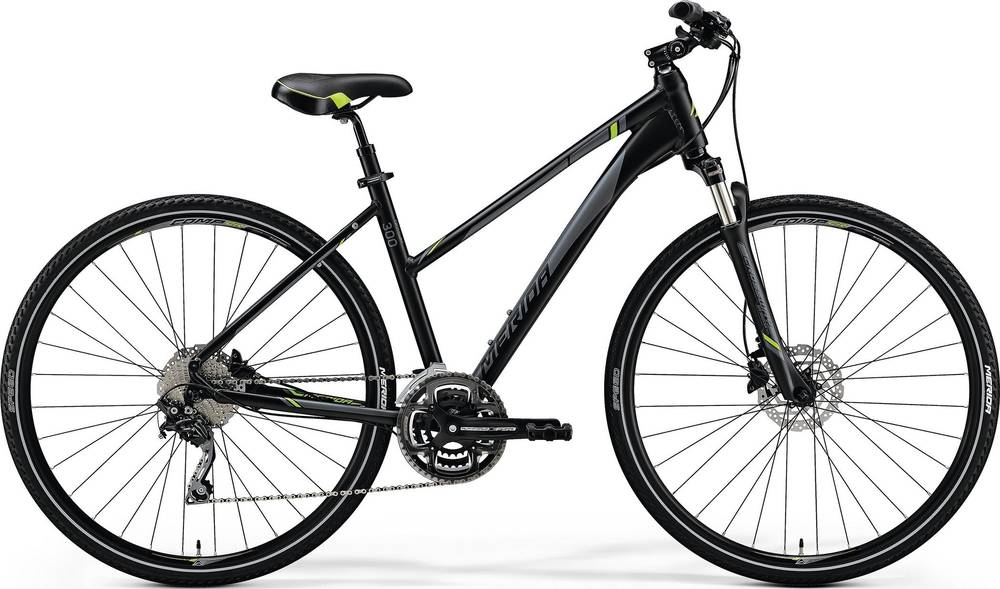

CROSSWAY 300 LADY belongs to the Merida Crossway model. Merida launched 210 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.41 kg (29.56 lbs), Merida bike is slightly lighter than average. In conclusion, the average Hybrid bike weighs 3.28% more than CROSSWAY 300 LADY.
CROSSWAY 300 LADY components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The CROSSWAY 300 LADY 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY 300 LADY comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
