Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crossway TFS-D-Single
Suspension Fork
SR Suntour NCX Lite E-RL 63
Drivetrain
Rear Derailleur
Shimano Deore XT-T
Front Derailleur
Shimano Deore XT-48
Shift Levers
Shimano Deore XT ispec
Cassette
Shimano CS-HG81-10 11-34
Crank
Shimano Deore XT 48-36-26 CG
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano Deore XT Cen
Rear Hub
Shimano Deore XT Cen
Rims
MERIDA XCD Lite
Spokes
black stainless
Tires
Schwalbe Smart Sam Perf. 40
Brakes
Brakes
Shimano Deore XT-Fin 160 mm ice Cen
Brake Levers
attached
Cockpit
Handlebar
Afterburner Flat 620
Headset
Conoid semi Neck
Seat
Saddle
Selle Italia Zoo
Seatpost
FSA Afterburner
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 667 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

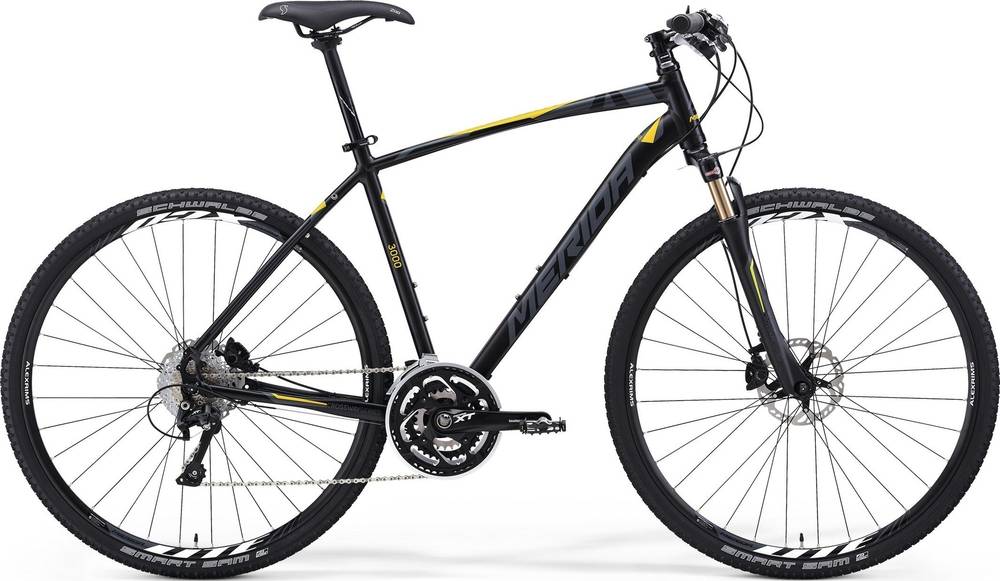

Crossway 3000 belongs to the Merida Crossway model. There are 210 bikes that carry this model name. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Crossway 3000 has a weight of 11.4 kg (25.13 lbs). In other words, this model is 21.49% lighter than the average Hybrid bike.
Crossway 3000 components
Fork
Merida Crossway 3000 2014 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Merida Crossway 3000 2014, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Crossway 3000 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
