Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, microSHIFT -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX HLO, Coil, 63mm suspension travel, lockout, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M370
Front Derailleur
Shimano FD-M370
Shift Levers
Micro Shift SL-M850-L3
Cassette
Shimano CS-HG200, 11-32 teeth, 9 speed
Crank
Shimano FC-M371, 48-36-26 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket
BSA, threaded
Chain
KMC M99
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Black steel
Tires
MERIDA K1171, 700x40C, wire
Brakes
Brakes
Power DS100, 2 piston, hydraulic disc brake
Cockpit
Handlebar
MERIDA CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA TH888/NO.10
Seat
Saddle
MERIDA CROSS SPORT
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.6 mm | 1.61 mm | 1.63 mm | 1.65 mm |
| Front Center | 625 mm | 630 mm | 634 mm | 645 mm | 653 mm | 674 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 79 mm | 79 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Stack | 627 mm | 627 mm | 638 mm | 652 mm | 674 mm | 702 mm |
| Reach | 389 mm | 394 mm | 400 mm | 406 mm | 413 mm | 425 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1083 mm | 1088 mm | 1092 mm | 1103 mm | 1111 mm | 1132 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 685 mm | 720 mm | 755 mm | 789 mm | 824 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

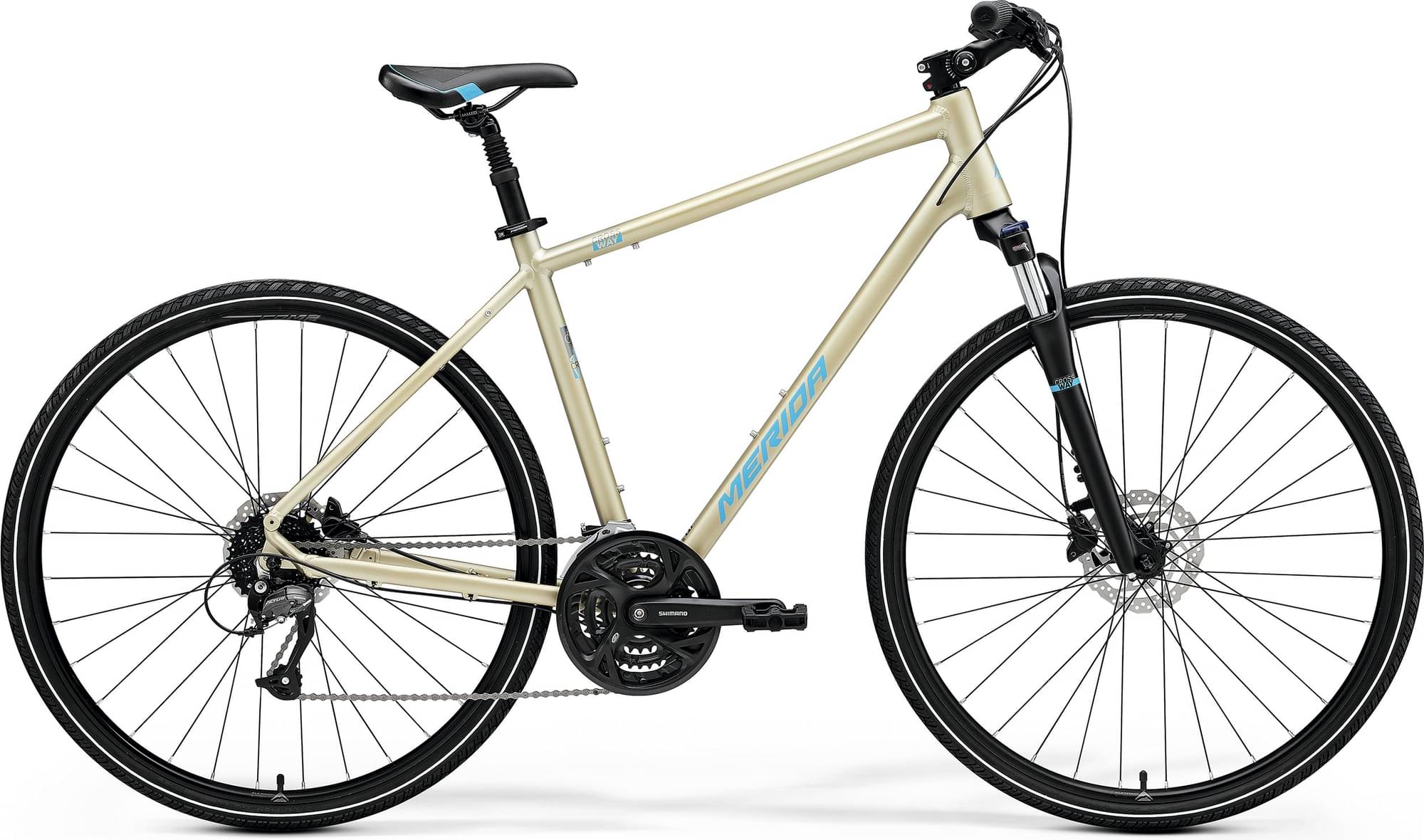

CROSSWAY 40 completes the Merida Crossway model. Merida released 210 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida CROSSWAY 20-D (L) 2023 is the most economical model, with a starting price of 560$. Merida CROSSWAY 300 2023 on the other hand costs 1077$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 623$. In conclusion, this bike price is 10.85% more expensive than the price of the average Hybrid bike.
Overview of components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on CROSSWAY 40 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
