Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED
Suspension Fork
Suntour NEX 63mm travel with lockout
Drivetrain
Rear Derailleur
Shimano Altus RD-M370
Front Derailleur
Shimano FD-M371
Shift Levers
Shimano EF505 27 speed EZ-fire shifters
Cassette
Shimano CS-HG200, 9 speed, 11-32 teeth
Crank
Suntour XCM 48-36-26 with chainguard
Chain
KMC M99
Wheels
Front Hub
Shimano TX505 32 hole quick release with centerlock
Rear Hub
Shimano TX505 32 hole quick release with centerlock
Rims
MERIDA aluminium, 32 hole for disc brakes
Spokes
Black steel
Tires
Kenda K1024 40c wire bead
Brakes
Brakes
Shimano EF505 hydraulic disc brakes with 160mm centerlock rotors
Brake Levers
Shimano EF505
Cockpit
Handlebar
MERIDA Speed 660mm wide 30mm rise
Headset
B52S/NO.10
Seat
Saddle
Crossway Sport
Seatpost
Suspension 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.5 mm | 1.47 mm | 1.49 mm | 1.52 mm | 1.59 mm |
| Front Center | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 51 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 63 mm | 65 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 603 mm | 605 mm | 615 mm | 617 mm | 626 mm | 650 | 681 mm |
| Reach | 400 mm | 403 mm | 411 mm | 420 mm | 421 mm | 429 mm | 428 mm |
| Top Tube Length | 571 mm | 581 mm | 591 mm | 601 mm | 611 mm | 626 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1079 mm | 1078 mm | 1088 mm | 1093 mm | 1097 mm | 1113 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 736 mm | 751 mm | 768 mm | 799 mm | 823 mm | 851 mm | 881 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

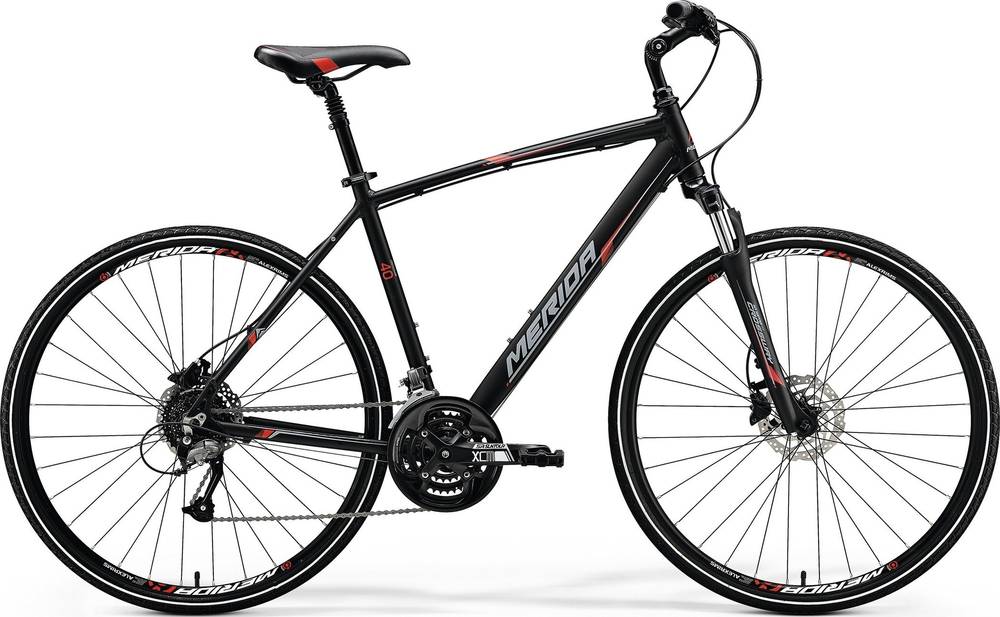

CROSSWAY 40-D completes the Merida Crossway model. Merida launched 210 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida CROSSWAY 40-D it’s weighing 15.1 kg (33.29 lbs). At this weight, is a bit heavier than average. In short, the average Hybrid bike weight is 9.03% lower than this one.
CROSSWAY 40-D components
Fork
Merida CROSSWAY 40-D 2018 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Merida CROSSWAY 40-D 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY 40-D has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
