Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED
Suspension Fork
SR NEX HLO 63
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370 48
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 48-36-26 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC M99
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA comp D
Tires
Cross 700 40C
Brakes
Brakes
Promax DSK hydraulic 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp 620 R25
Headset
Conoid steel
Seat
Saddle
Cross Sport
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 632 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 50 mm | 50 mm | 51 mm | 50 mm |
| Trail | 67 mm | 67 mm | 64 mm | 65 mm | 61 mm | 61 mm | 60 mm | 58 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 668 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 415 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1066 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 723 mm | 740 mm | 755 mm | 786 mm | 810 mm | 837 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

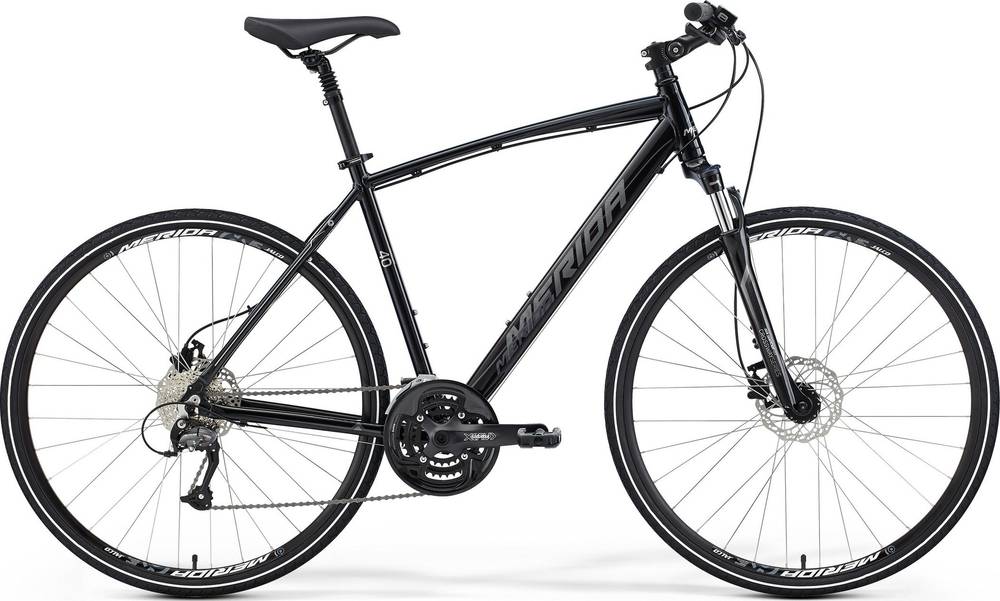

Crossway 40-D / -Lady is a Merida Crossway model. Merida launched 210 bikes of this model so far. You can easily view all of the Merida Crossway bikes models from 2015, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crossway 40-D / -Lady components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Crossway 40-D / -Lady model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crossway 40-D / -Lady has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
