Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED LADY
Suspension Fork
SR NEX HLO 63
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M371 48
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 48-36-26 CG
Chain
Chain 9S
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA D
Spokes
stainless silver
Tires
Cross 700 40C
Brakes
Brakes
Tektro TA hydraulic 160
Brake Levers
Tektro T285
Cockpit
Handlebar
MERIDA Comp 660 R25
Headset
Thread Conoid
Seat
Saddle
Cross lady
Seatpost
Suspension 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm | 62 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 597 mm | 596 mm | 597 mm | 595 mm | 607 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

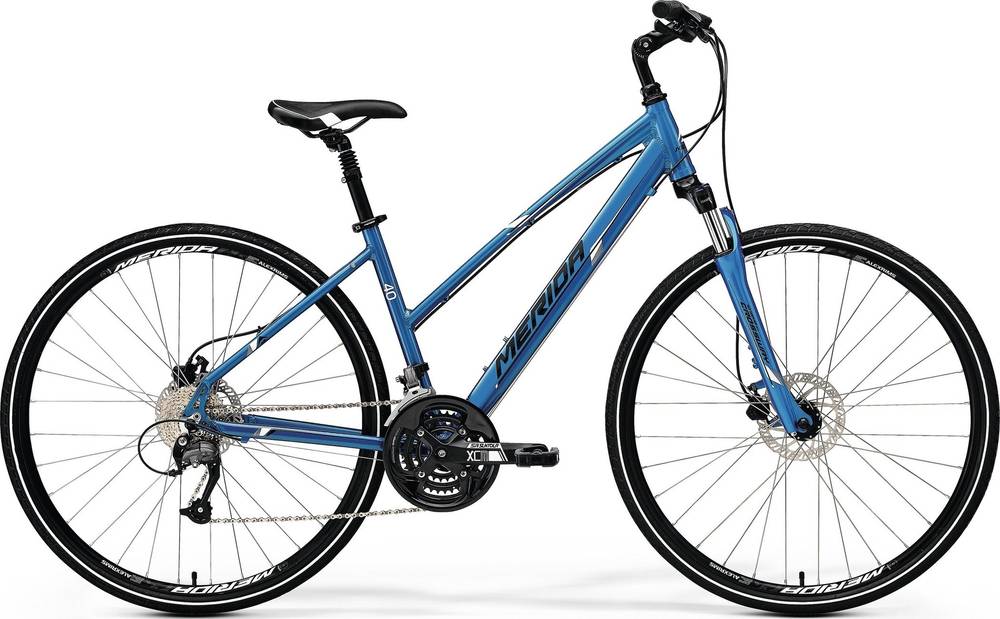

CROSSWAY 40-D LADY is a Merida Crossway model. Merida released 210 bikes variations of this model so far. You can easily view all of the Merida Crossway bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.6 kg (32.19 lbs), the CROSSWAY 40-D LADY model is a bit heavier than average. In conclusion, the average Hybrid bike weighs 5.42% less than CROSSWAY 40-D LADY.
CROSSWAY 40-D LADY components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the CROSSWAY 40-D LADY bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
