Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED LADY
Suspension Fork
Suntour NEX 63mm travel with lockout
Drivetrain
Rear Derailleur
Shimano Altus RD-M370
Front Derailleur
Shimano FD-M371
Shift Levers
Shimano EF505 27 speed EZ-fire shifters
Cassette
Shimano CS-HG200, 9 speed, 11-32 teeth
Crank
Suntour XCM 48-36-26 with chainguard
Chain
KMC M99
Wheels
Front Hub
Shimano TX505 32 hole quick release with centerlock
Rear Hub
Shimano TX505 32 hole quick release with centerlock
Rims
MERIDA aluminium, 32 hole for disc brakes
Spokes
Black steel
Tires
Kenda K1024 40c wire bead
Brakes
Brakes
Shimano EF505 hydraulic disc brakes with 160mm centerlock rotors
Brake Levers
Shimano EF505
Cockpit
Handlebar
MERIDA Speed 660mm wide 30mm rise
Headset
B52S/NO.10
Seat
Saddle
Crossway Sport
Seatpost
Suspension 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 597 mm | 596 mm | 597 mm | 595 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

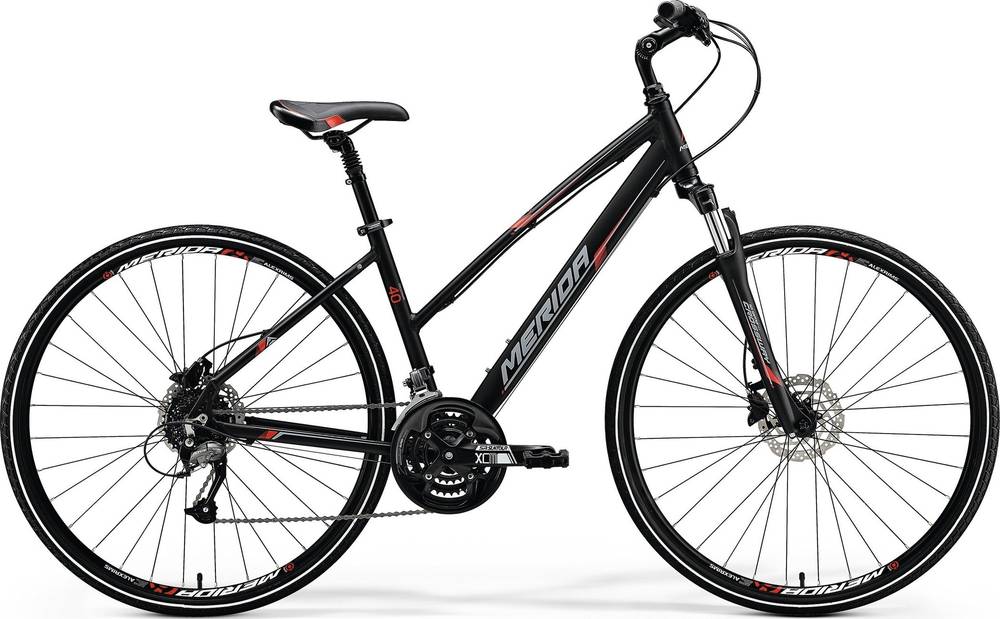

CROSSWAY 40-D LADY completes the Merida Crossway model. There are 210 bikes that carry this model name. Take a sneak peek at all Merida Crossway bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, CROSSWAY 40-D LADY has a weight of 14.9 kg (32.85 lbs). To sum up, it’s 7.58% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
Merida CROSSWAY 40-D LADY 2018 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the CROSSWAY 40-D LADY model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY 40-D LADY is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Merida CROSSWAY 40-D LADY bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
