Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
Suntour SR NCX D-RL 63
Drivetrain
Rear Derailleur
Shimano XT-T
Front Derailleur
Shimano Deore-48
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
FSA Dynadrive 48-36-26 CG (BSA)
Bottom Bracket
BSA, threaded
Chain
KMC X10
Wheels
Front Hub
Formula Disc / Formula Disc cassette
Rear Hub
Formula Disc / Formula Disc cassette
Rims
MERIDA comp D
Spokes
Black stainless
Tires
MERIDA Speed Lite 40 KV
Brakes
Brakes
Tektro Vela hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
FSA No.11P
Seat
Saddle
Crossway comfort pro
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 51 mm |
| Trail | 67 mm | 67 mm | 65 mm | 65 mm | 61 mm | 61 mm | 61 mm | 57 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 667 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 72.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 697 mm | 722 mm | 738 mm | 755 mm | 785 mm | 809 mm | 837 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

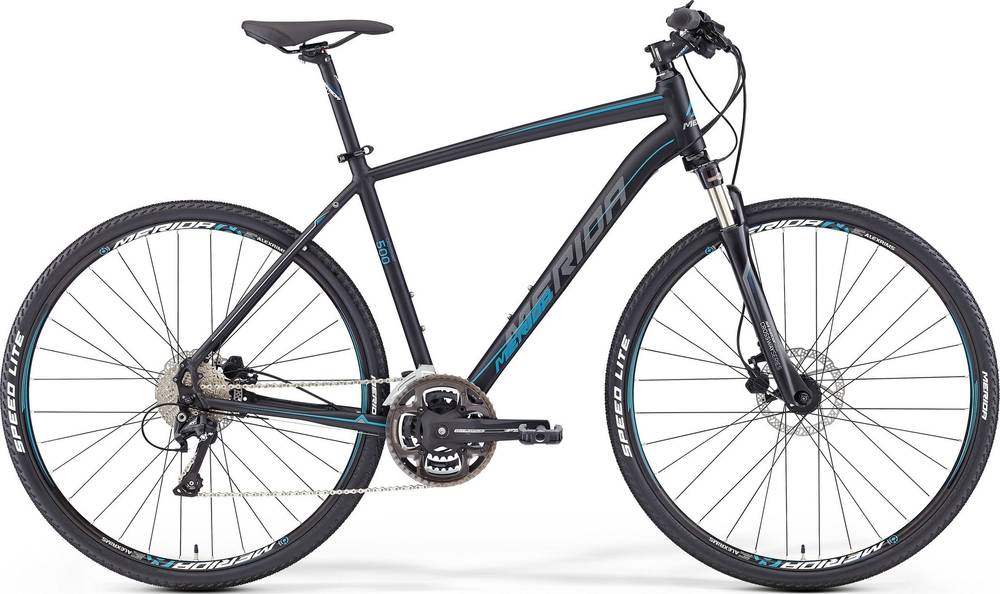

CROSSWAY 500 / -LADY is a Merida Crossway model. There are 210 bikes that carry this model name. You can easily view all of the Merida Crossway bikes models from 2016, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida CROSSWAY 500 / -LADY it’s weighing 12.3 kg (27.12 lbs). At this weight, is considerably lighter than average. To sum up, it’s 12.6% lighter than the average weight of Hybrid bikes.
CROSSWAY 500 / -LADY components
Fork
Merida CROSSWAY 500 / -LADY 2016 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the CROSSWAY 500 / -LADY bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY 500 / -LADY has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
