Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS LADY
Suspension Fork
SR NCX D-RL 63
Drivetrain
Rear Derailleur
Shimano XT-T
Front Derailleur
Shimano Deore-48
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
FSA Alfa drive 48-36-26 CG
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA comp D
Spokes
Black stainless
Tires
Maxxis Overdrive II 40 kevlar ref
Brakes
Brakes
Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
EGG steel neck
Seat
Saddle
Crossway comfort lady
Seatpost
MERIDA Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 636 mm | 637 mm | 647 mm | 651 mm | 661 mm |
| Rake | 48 mm | 50 mm | 50 mm | 49 mm | 50 mm |
| Trail | 69 mm | 67 mm | 67 mm | 65 mm | 61 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 404 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1084 mm | 1085 mm | 1095 mm | 1099 mm | 1109 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 596 mm | 596 mm | 597 mm | 595 mm | 597 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

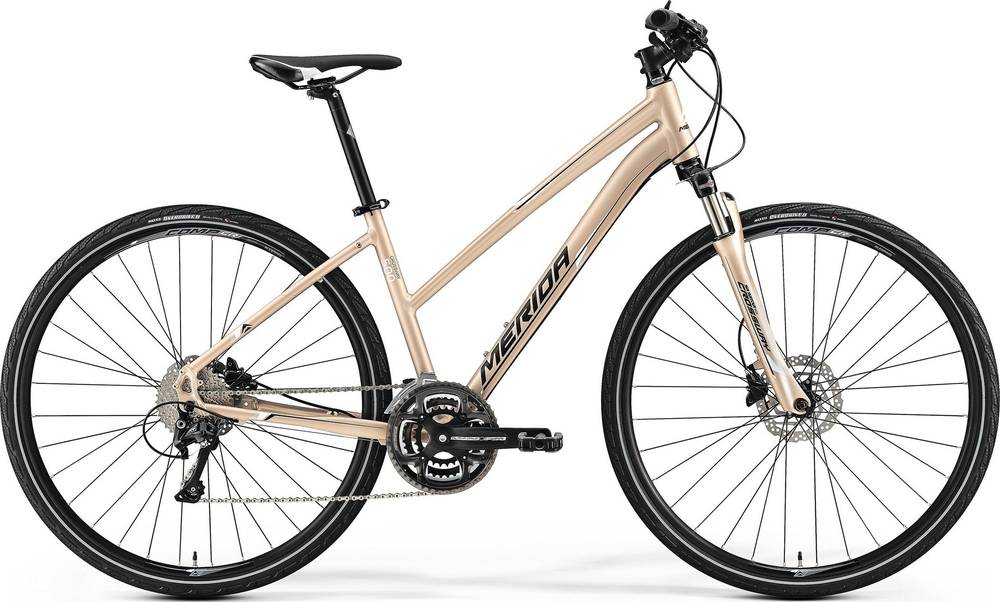

CROSSWAY 500 LADY is a Merida Crossway model. Merida released 210 bikes variations of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.01 kg (28.68 lbs), the CROSSWAY 500 LADY model is a bit lighter than average. In other words, this model is 6.46% lighter than the average Hybrid bike.
CROSSWAY 500 LADY components
Fork
Merida CROSSWAY 500 LADY 2017 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida CROSSWAY 500 LADY 2017, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY 500 LADY is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
