Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
Suntour NCX D-RL 63mm fork with remote lockout
Drivetrain
Rear Derailleur
Shimano XT T8000
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore 30 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
Shimano Deore 48-36-26 teeth
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock quick release hubs
Rear Hub
Shimano Centerlock quick release hubs
Rims
MERIDA Comp D
Spokes
Black stainless
Tires
Maxxis Overdrive II 40c kevlar puncture protection and reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc, 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2346
Seat
Saddle
Crossway Comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.56 mm | 1.57 mm | 1.6 mm | 1.62 mm |
| Front Center | 629 mm | 634 mm | 638 mm | 649 mm | 658 mm | 679 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 75 mm | 75 mm | 72 mm | 72 mm | 68 mm | 67 mm |
| Stack | 618 mm | 618 mm | 629 mm | 644 mm | 665 mm | 693 mm |
| Reach | 392 mm | 397 mm | 403 mm | 409 mm | 416 mm | 427 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1087 mm | 1092 mm | 1096 mm | 1107 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 686 mm | 719 mm | 752 mm | 786 mm | 821 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

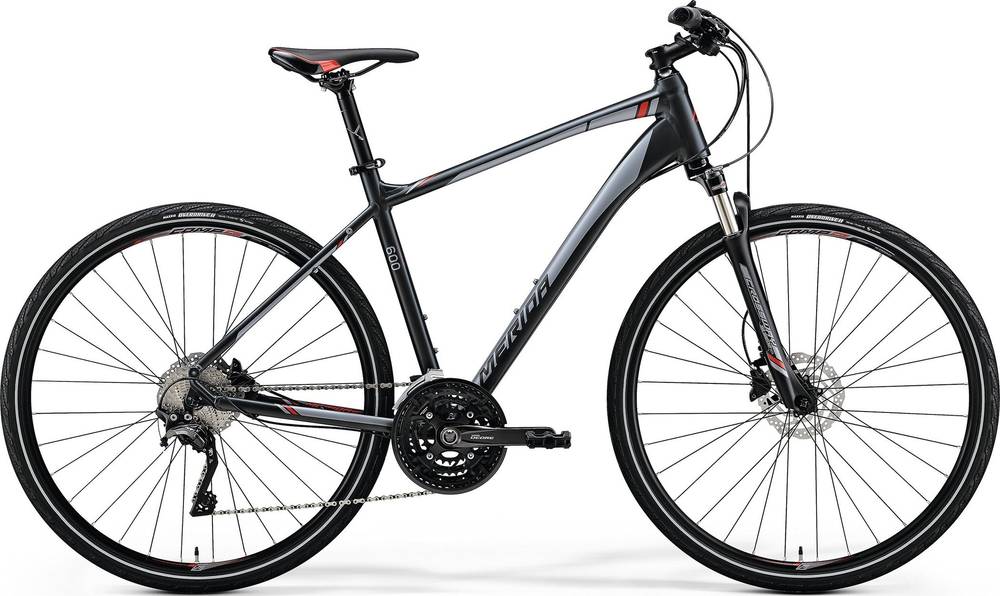

CROSSWAY 600 is a Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.9 kg (28.44 lbs), the CROSSWAY 600 model is a bit lighter than average. To sum up, it’s 7.36% lighter than the average weight of Hybrid bikes.
Overview of components
Fork
Merida CROSSWAY 600 2018 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on CROSSWAY 600 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY 600 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
