Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS
Suspension Fork
SR NCX lite D-RL 63
Drivetrain
Rear Derailleur
Shimano XT-T
Front Derailleur
Shimano Deore-48
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG62-10 11-34
Crank
Shimano T611 48-36-26 CG
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Bearing Disc / Bearing Disc Cassette
Rear Hub
Bearing Disc / Bearing Disc Cassette
Rims
MERIDA comp D
Tires
MERIDA Speed Lite 40 KV
Brakes
Brakes
Tektro Vela hydraulic 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 620 R12
Headset
Conoid semi neck
Seat
Saddle
Cross Sport
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.5 mm | 1.53 mm | 1.61 mm |
| Front Center | 632 mm | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 51 mm |
| Trail | 67 mm | 67 mm | 65 mm | 65 mm | 61 mm | 61 mm | 61 mm | 57 mm |
| Stack | 590 mm | 590 mm | 602 mm | 602 mm | 604 mm | 613 mm | 637 mm | 667 mm |
| Reach | 387 mm | 387 mm | 388 mm | 398 mm | 407 mm | 408 mm | 416 mm | 415 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1066 mm | 1066 mm | 1065 mm | 1075 mm | 1080 mm | 1084 mm | 1100 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 697 mm | 722 mm | 738 mm | 755 mm | 785 mm | 809 mm | 837 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

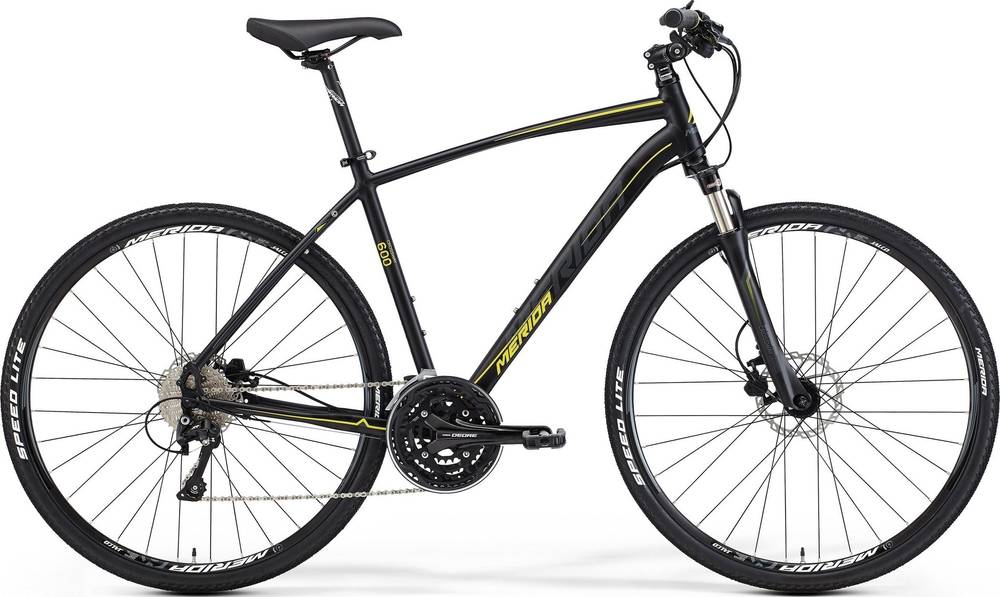

Crossway 600 / -Lady is a Merida Crossway model. There are 210 bikes that carry this model name. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Crossway 600 / -Lady are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Crossway 600 / -Lady has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
