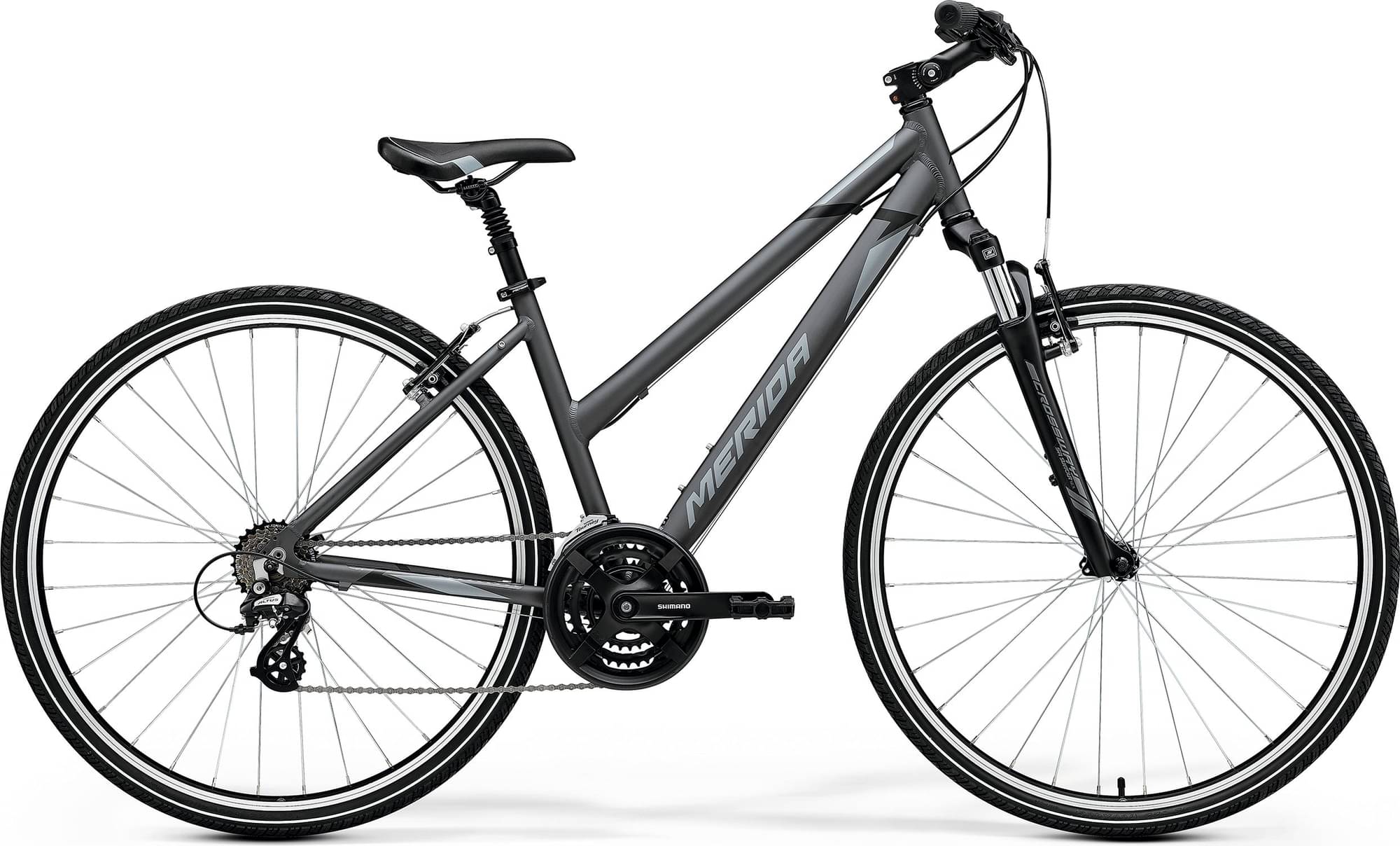

Merida CROSSWAY L 10-V 2023
2023 Urban
Estimate price |
669$
Weight | 13.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY L DT, material: aluminium, 700x42C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, MUK 3 Hanger
Suspension Fork
Suntour NEX, Coil, 63mm suspension travel, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY510
Shift Levers
Shimano ST-EF500
Cassette
Shimano MF-TZ500, 14-28 teeth, 7 speed
Crank
Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
KMC NS8
Pedals
VP VPE-891
Wheels
Front Hub
Joytech JY-751DSE / Joytech JY-752DSE, 100x9mm width front hub, 32 spoke holes, 135x9mm width rear hub, 32 spoke holes
Rear Hub
Joytech JY-751DSE / Joytech JY-752DSE, 100x9mm width front hub, 32 spoke holes, 135x9mm width rear hub, 32 spoke holes
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Steel UCP
Tires
Front: MERIDA K1171, 700x40C, wire, Rear: MERIDA K1171, 700x40C, wire
Brakes
Brakes
Promax MTV-117A
Cockpit
Stem
MERIDA TK, material: aluminium, 25.4mm diameter, adjustable, 100 mm all sizes
Handlebar
MERIDA CC, material: steel, 620mm width, 30mm rise
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm |
| Front Center | 632 mm | 637 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm |
| Stack | 614 mm | 619 mm | 619 mm |
| Reach | 398 mm | 401 mm | 411 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 599 mm | 597 mm | 599 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
CROSSWAY L 10-V belongs to the Merida Crossway model. Merida released 210 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida CROSSWAY 20-D (L) 2023 is the most economical model, with a starting price of 560$. Merida CROSSWAY 300 2023 on the other hand costs 1077$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 608$. If we compare this with the average Hybrid bike cost we notice that the price is 8.19% more expensive.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, CROSSWAY L 10-V has a weight of 13.82 kg (30.47 lbs). In short, the average Hybrid bike weight is 0.22% higher than this one.
CROSSWAY L 10-V components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on CROSSWAY L 10-V are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY L 10-V comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
CROSSWAY L 10-V comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
