Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX HLO, Coil, 63mm suspension travel, Lockout, 700x48C max. wheelsize
Drivetrain
Rear Derailleur
Shimano ALIVIO T4000, SGS
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus
Cassette
Shimano HG200, 11-34 teeth, 9 speed
Crank
SAMOX AF29-321SSS-P, 48-35-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL
Bottom Bracket
FSA TH-7420ST CARTRIDGE BEARING
Chain
KMC M99
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild, Rear: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild
Brakes
Brakes
TEKTRO M275, 2 piston
Brake Levers
TEKTRO M275
Cockpit
Stem
MERIDA COMP TK, material: aluminium, 31.8mm diameter, adjustable, XXS/XS/S/M 95 mm, L/XL 110 mm
Handlebar
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise
Headset
MERIDA M2346
Seat
Saddle
MERIDA CROSS SPORT
Seatpost
MERIDA TK, 30.9mm diameter, 10mm setback, 45mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.61 mm | 1.62 mm |
| Front Center | 630 mm | 634 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 616 mm | 627 mm | 641 mm |
| Reach | 383 mm | 389 mm | 395 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1077 mm | 1081 mm | 1092 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 635 mm | 635 mm | 635 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

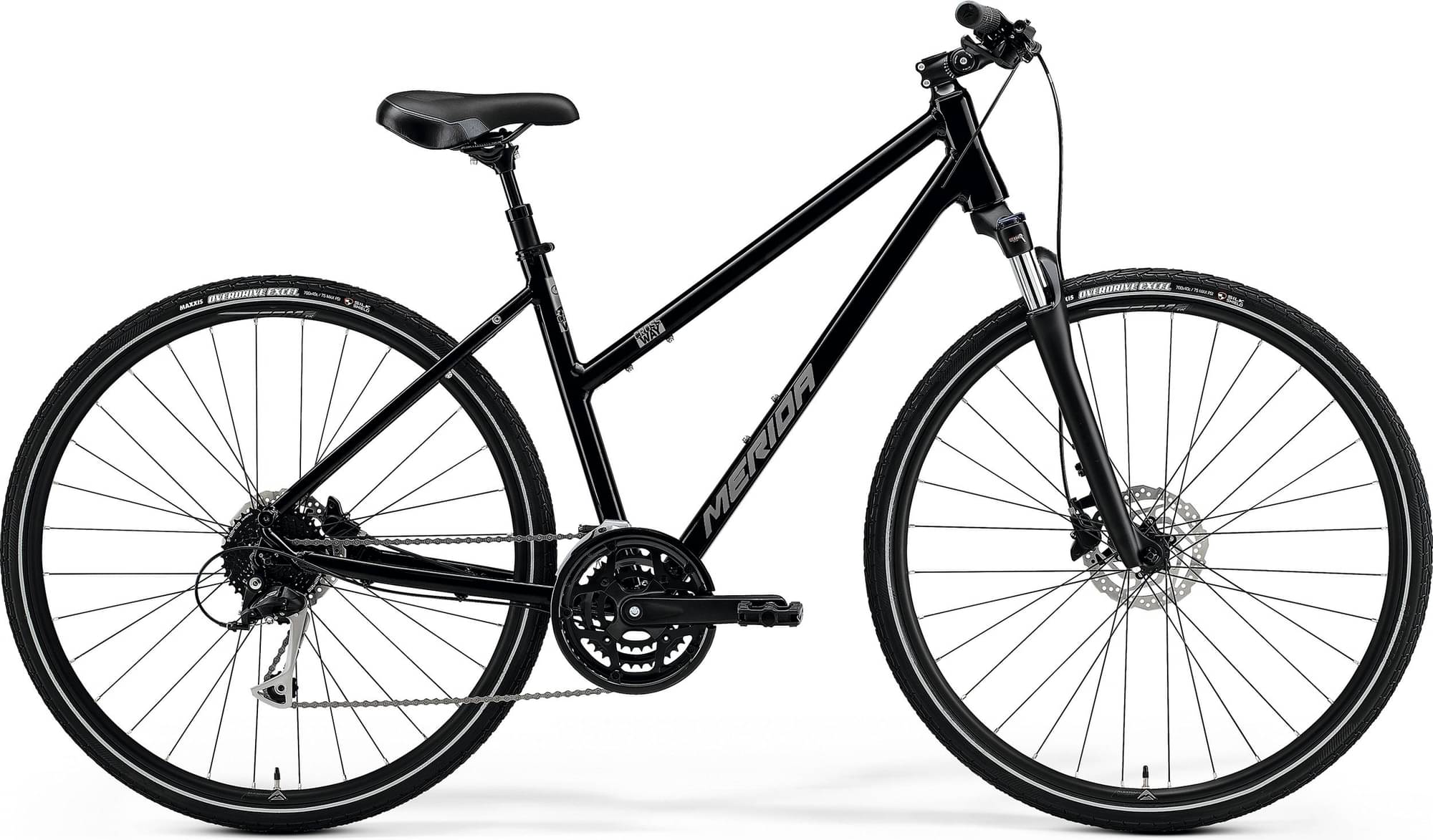

CROSSWAY L 100 belongs to the Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida CROSSWAY 20-D (L) 2023 is the most affordable bike of this model and has a price of 560$. On the other hand, Merida CROSSWAY 300 2023, is the most expensive and costs 1077$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Merida released this model in 2023, its price was 955$. Comparing the average cost of a Hybrid bike to this one, you will see that CROSSWAY L 100 price is 69.93% more expensive.
Overview of components
Fork
Merida CROSSWAY L 100 2023 bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The CROSSWAY L 100 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY L 100 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Merida CROSSWAY L 100 bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
