Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT L, material: aluminium, 700C wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX, Coil, 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano ST-EF500
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano TY301, 48-38-28 teeth, 170 mm-XXS/SM, 175 mm-ML/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
KMC M700
Wheels
Front Hub
Joytech D041DSE, 100x9mm width front hub, 32 spoke holes, 6 bolt
Rear Hub
Joytech D142TSE, 135x9mm width rear hub, 32 spoke holes, 6 bolt
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Steel UCP
Tires
MERIDA K1171, 700x40C, wire
Brakes
Brakes
Jak J8 disc
Brake Levers
Shimano ST-EF500
Cockpit
Handlebar
MERIDA CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2mm diameter, 13mm setback, 40mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm | 62 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 599 mm | 597 mm | 599 mm | 597 mm | 598 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 175 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | cm |
About this model

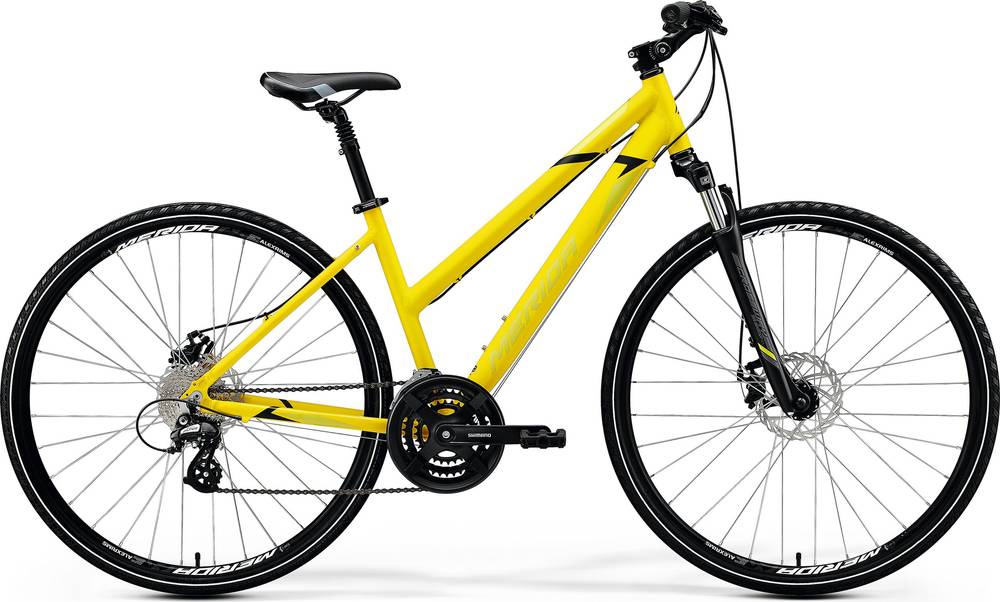

CROSSWAY L 15-MD is a Merida Crossway model. Merida released 210 bikes variations of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2020, by clicking here.
Model range prices
Merida CROSSWAY 10-V 2020 is the most affordable bike of this model and has a price of 487$. On the other hand, Merida CROSSWAY URBAN 300 2020, is the most expensive and costs 1010$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.9 kg (32.85 lbs), Merida bike is a bit heavier than average. In conclusion, the average Hybrid bike weighs 7.58% less than CROSSWAY L 15-MD.
Overview of components
Fork
Merida CROSSWAY L 15-MD 2020 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the CROSSWAY L 15-MD bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY L 15-MD is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
