Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY L TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NCX-E RL Air, Air, 63mm suspension travel, Remote Lockout, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano XT T8000 Shadow, SGS
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano HG500, 11-34 teeth, 10 speed
Crank
Shimano XT, 48-36-26 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL
Bottom Bracket
Shimano MT800 BSA
Chain
KMC X10
Wheels
Front Hub
Shimano M4050, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano M4050, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium
Spokes
Black stainless
Tires
Maxxis Overdrive II, 700x40C, fold, reflective stripe, Silkworm
Brakes
Brakes
Shimano MT-500, 2 piston
Brake Levers
Shimano MT-500
Disk Rotors
Shimano RT10, 160 mm
Cockpit
Handlebar
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise
Headset
MERIDA M2340
Seat
Saddle
MERIDA EXPERT TK, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 5mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.6 mm | 1.61 mm | 1.63 mm |
| Front Center | 625 mm | 630 mm | 634 mm | 645 mm | 653 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 79 mm | 79 mm | 76 mm | 76 mm | 74 mm |
| Stack | 627 mm | 627 mm | 638 mm | 652 mm | 674 mm |
| Reach | 389 mm | 394 mm | 400 mm | 406 mm | 413 mm |
| Top Tube Length | 567 mm | 572 mm | 587 mm | 597 mm | 617 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1083 mm | 1088 mm | 1092 mm | 1103 mm | 1111 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 646 mm | 646 mm | 646 mm | 646 mm | 646 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

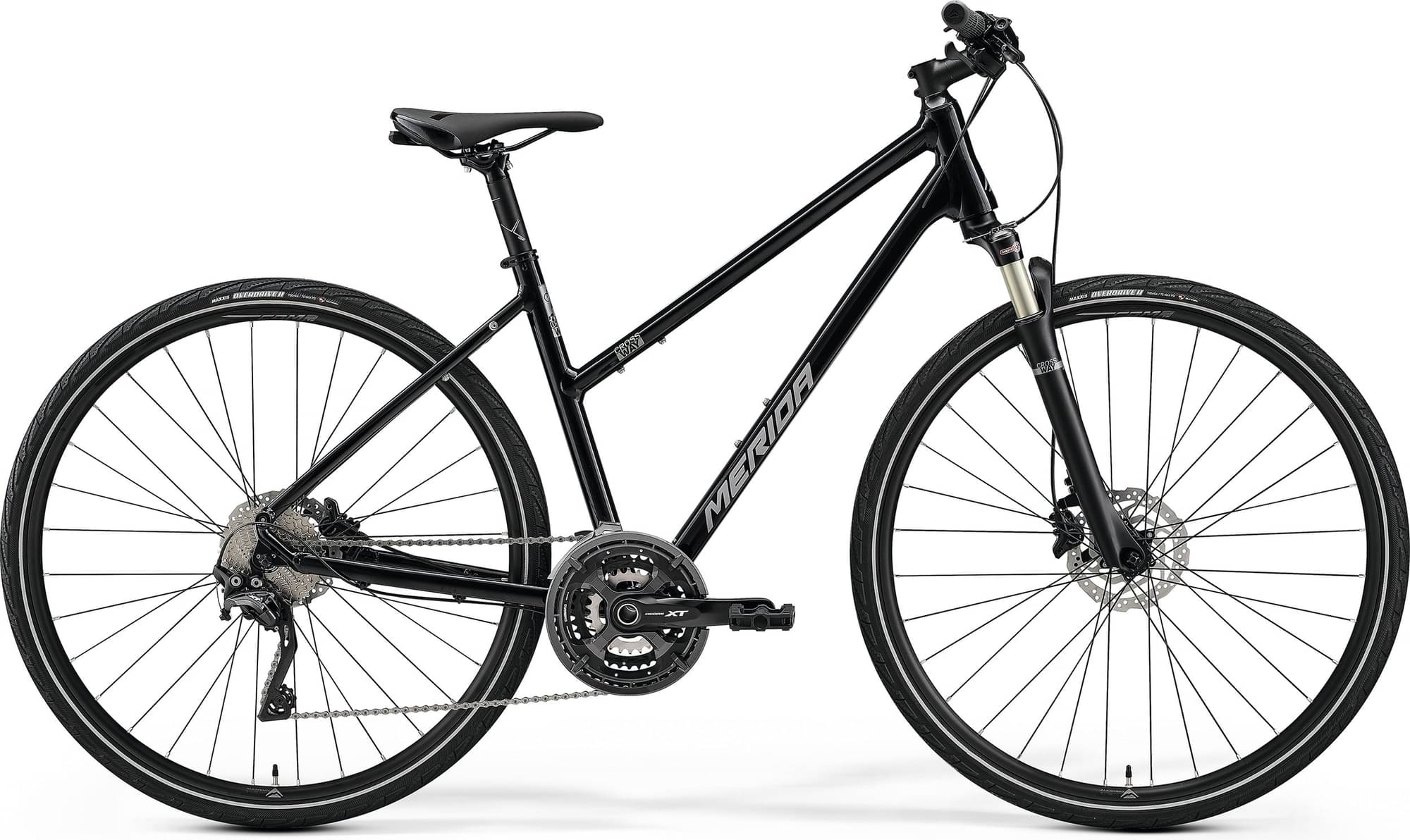

CROSSWAY L XT-EDITION completes the Merida Crossway model. There are 210 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Merida CROSSWAY 20-D (L) 2022 is the cheapest bike model and costs 560$. Merida CROSSWAY 300 2022 is the most expensive one and costs 1077$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
CROSSWAY L XT-EDITION components
Fork
The Suntour NCX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The CROSSWAY L XT-EDITION 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSSWAY L XT-EDITION comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
