Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Acera, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN SPEED
Suspension Fork
Lightweight aluminium fork with disc mounts
Drivetrain
Rear Derailleur
Shimano Acera-X RD-M360
Front Derailleur
Shimano FD-TY710
Shift Levers
Shimano EF505 24 speed EZ-fire shifters
Cassette
Sunrace CSM668, 8 speed, 11-32 teeth
Crank
Shimano TY301 48-38-28 with chainguard
Chain
KMC M700
Wheels
Front Hub
Shimano TX505 32 hole quick release with centerlock
Rear Hub
Shimano TX505 32 hole quick release with centerlock
Rims
MERIDA aluminium, 32 hole for disc brakes
Spokes
Black steel
Tires
Kenda K1024 38c wire bead
Brakes
Brakes
Shimano EF505 hydraulic disc brakes with 160mm centerlock rotors
Brake Levers
Shimano EF505
Cockpit
Handlebar
MERIDA Speed 660mm wide 30mm rise
Headset
TH888/NO.10
Seat
Saddle
Crossway Sport
Seatpost
MERIDA Speed 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.4 mm | 1.39 mm | 1.43 mm | 1.44 mm | 1.5 mm |
| Front Center | 625 mm | 631 mm | 635 mm | 645 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 51 mm | 45 mm | 49 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 63 mm | 69 mm | 62 mm | 66 mm | 66 mm | 63 mm |
| Stack | 577 mm | 583 mm | 588 mm | 595 mm | 609 mm | 628 mm | 654 mm |
| Reach | 407 mm | 410 mm | 419 mm | 427 mm | 427 mm | 436 mm | 437 mm |
| Top Tube Length | 571 mm | 581 mm | 591 mm | 601 mm | 611 mm | 626 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1072 mm | 1078 mm | 1082 mm | 1092 mm | 1092 mm | 1107 mm | 1111 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 745 mm | 762 mm | 793 mm | 817 mm | 844 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

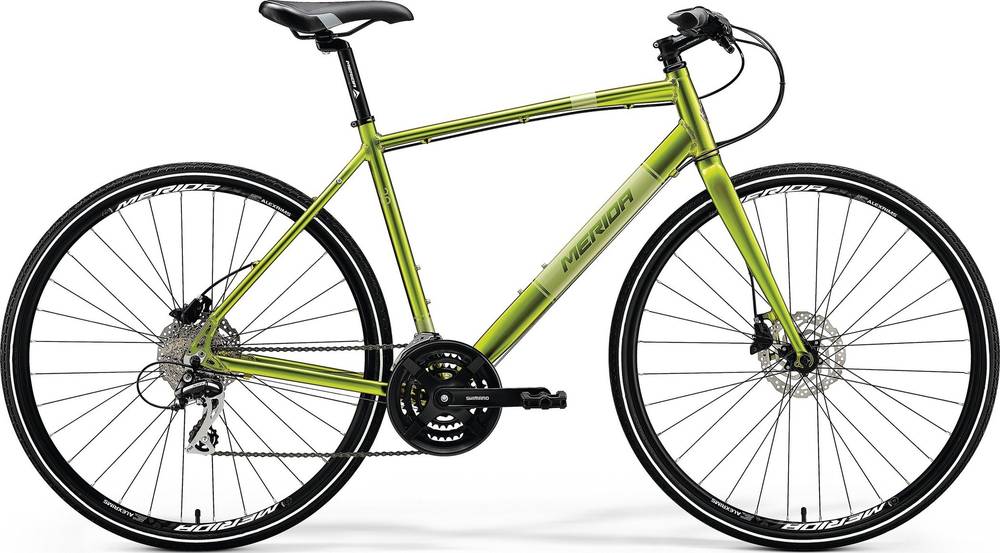

CROSSWAY URBAN 20-D belongs to the Merida Crossway model. Merida launched 210 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, CROSSWAY URBAN 20-D has a weight of 13 kg (28.66 lbs). In conclusion, the average Hybrid bike weighs 6.54% more than CROSSWAY URBAN 20-D.
CROSSWAY URBAN 20-D components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on CROSSWAY URBAN 20-D are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY URBAN 20-D has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
