Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Acera, Shimano -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY SPEED LADY
Suspension Fork
Urban Rigid Al straight disc
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano TY8s 48
Shift Levers
Shimano Altus rapidfire 3x8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 48-38-28 CG
Chain
Chain 8s
Wheels
Front Hub
Disc Alloy Allen / Disc cassette Allen
Rear Hub
Disc Alloy Allen / Disc cassette Allen
Rims
MERIDA D
Spokes
ucp steel
Tires
Cross 700 38C
Brakes
Brakes
Tektro TA hydraulic 160
Brake Levers
Tektro T285
Cockpit
Handlebar
MERIDA Speed 660 R25
Headset
Conoid
Seat
Saddle
Cross lady
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.51 mm | 1.58 mm | 1.53 mm |
| Front Center | 632 mm | 637 mm | 647 mm | 651 mm | 660 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm | 49 mm |
| Trail | 67 mm | 67 mm | 67 mm | 65 mm | 62 mm |
| Stack | 614 mm | 619 mm | 619 mm | 649 mm | 651 mm |
| Reach | 398 mm | 401 mm | 411 mm | 411 mm | 425 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 170 mm | 170 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1080 mm | 1085 mm | 1095 mm | 1099 mm | 1108 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 597 mm | 596 mm | 597 mm | 595 mm | 607 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

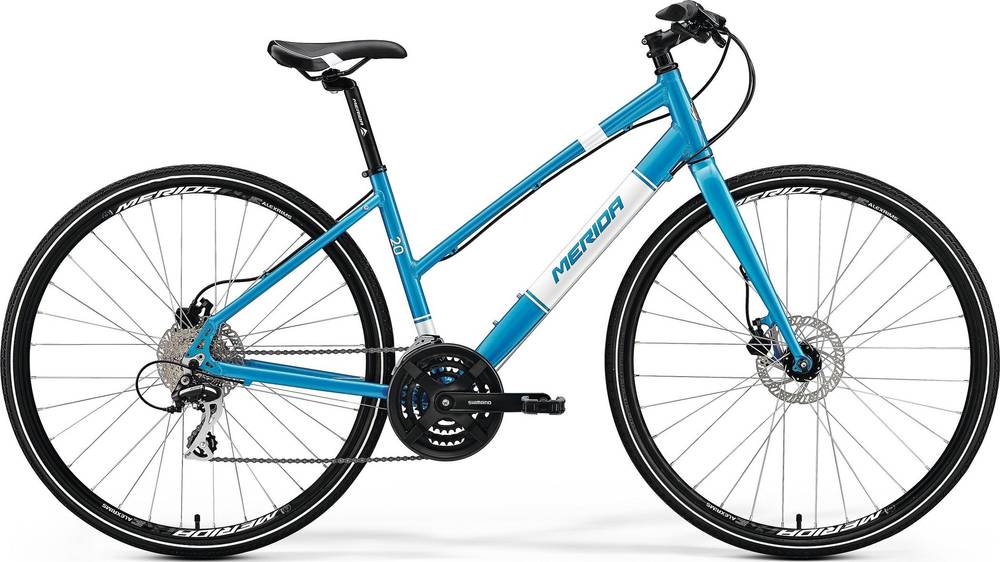

CROSSWAY URBAN 20-D LADY is a Merida Crossway model. There are 210 bikes that carry this model name. Take a sneak peek at all Merida Crossway bikes models from 2017, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, CROSSWAY URBAN 20-D LADY has a weight of 12.7 kg (28 lbs). In short, the average Hybrid bike weight is 9.06% higher than this one.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Merida CROSSWAY URBAN 20-D LADY 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSSWAY URBAN 20-D LADY has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
