Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
Urban BC Rigid Alloy straight disc
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore double
Shift Levers
Shimano Deore
Cassette
Sunrace CSR-10 11-32
Crank
FSA Gamma drive 36-22 (BSA)
Bottom Bracket
BSA, threaded
Chain
KMC X10
Wheels
Front Hub
Disc Alloy Track / Disc cassette Track
Rear Hub
Disc Alloy Track / Disc cassette Track
Rims
MERIDA comp Pro D
Spokes
Black stainless
Tires
Maxxis Overdrive 35 ref
Brakes
Brakes
Tektro Auriga hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
FSA No.57/No.61BP
Seat
Saddle
Crossway comfort pro
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 625 mm | 625 mm | 625 mm | 639 mm | 640 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 45 mm | 45 mm | 49 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 65 mm | 66 mm | 66 mm | 66 mm | 63 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1073 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 688 mm | 713 mm | 729 mm | 743 mm | 776 mm | 801 mm | 827 mm | 854 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

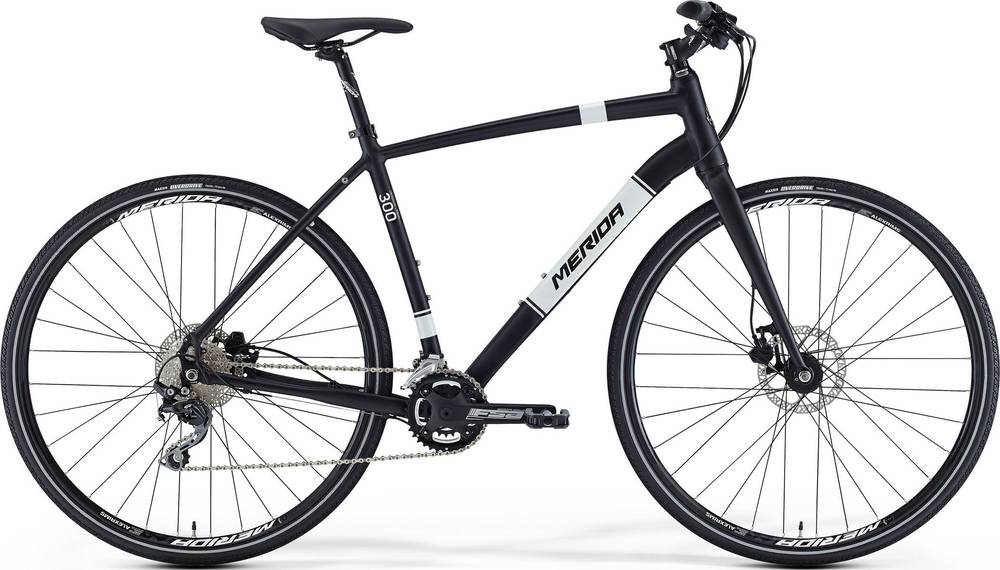

CROSSWAY URBAN 300 is a Merida Crossway model. Merida launched 210 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 11.5 kg (25.35 lbs), the CROSSWAY URBAN 300 model is much lighter than average. To sum up, it’s 20.43% lighter than the average weight of Hybrid bikes.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on CROSSWAY URBAN 300 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
