Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
Urban BC Rigid Alloy straight disc
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore double
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
FSA Alfa drive 36-24
Chain
KMC X10
Wheels
Front Hub
Centerlock allen / Centerlock cassette allen
Rear Hub
Centerlock allen / Centerlock cassette allen
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35 ref
Brakes
Brakes
Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
Big Conoid semi neck
Seat
Saddle
Crossway comfort
Seatpost
MERIDA Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 41cm | 44cm | 46cm | 48cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 681 mm | 681 mm | 681 mm | 695 mm | 696 mm | 701 mm | 716 mm | 720 mm |
| Rake | 98 mm | 98 mm | 98 mm | 101 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Trail | 17 mm | 17 mm | 13 mm | 10 mm | 10 mm | 10 mm | 10 mm | 7 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 71.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm | 388 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1073 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 690 mm | 714 mm | 729 mm | 743 mm | 776 mm | 801 mm | 827 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

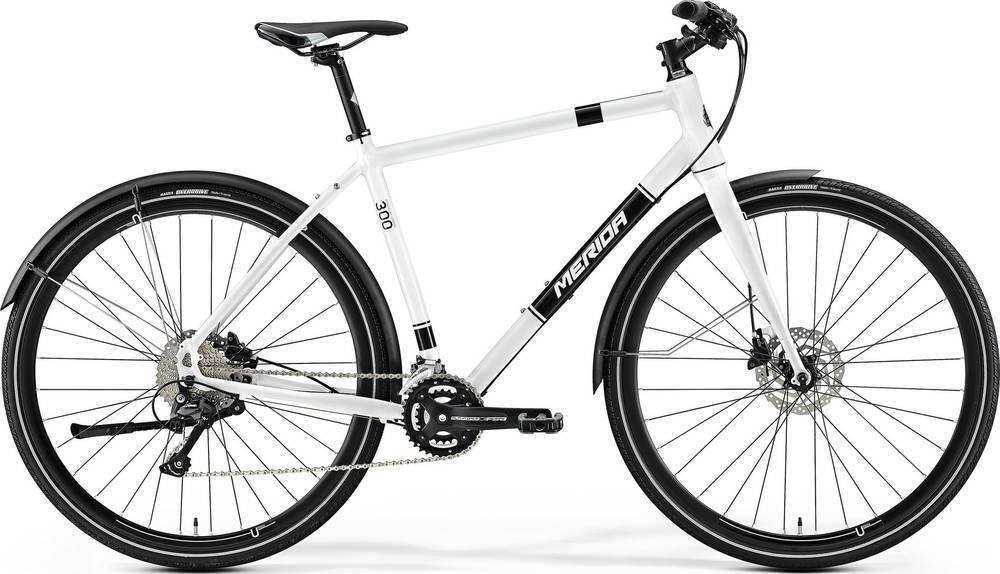

CROSSWAY URBAN 300 is a Merida Crossway model. Merida released 210 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably lighter than average, CROSSWAY URBAN 300 has a weight of 12.26 kg (27.03 lbs). In conclusion, the average Hybrid bike weighs 12.97% more than CROSSWAY URBAN 300.
CROSSWAY URBAN 300 components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the CROSSWAY URBAN 300 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY URBAN 300 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
