Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset NX, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
Lightweight aluminium fork with disc mounts
Drivetrain
Rear Derailleur
SRAM NX 11
Shift Levers
SRAM NX 11 speed trigger
Cassette
Sunrace CSMS8, 11 speed, 11-42 teeth
Crank
FSA Comet 36 teeth
Chain
KMC X11-1
Wheels
Front Hub
Alloy hubs with allen key security fixing and centerlock
Rear Hub
Alloy hubs with allen key security fixing and centerlock
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35c with reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc, 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2341
Seat
Saddle
Crossway comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 625 mm | 625 mm | 625 mm | 635 mm | 640 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 69 mm | 66 mm | 66 mm | 66 mm | 63 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1069 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 690 mm | 714 mm | 730 mm | 746 mm | 776 mm | 800 mm | 826 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

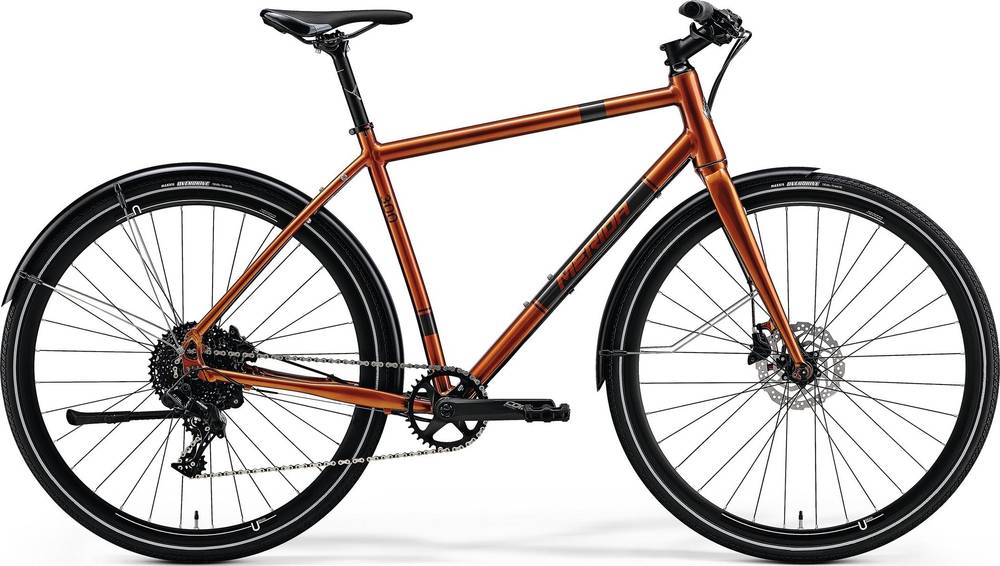

CROSSWAY URBAN 300 is a Merida Crossway model. 210 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida CROSSWAY URBAN 300 it’s weighing 11.82 kg (26.06 lbs). At this weight, is much lighter than average. In short, the average Hybrid bike weight is 17.17% higher than this one.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the CROSSWAY URBAN 300 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
