Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS
Suspension Fork
Full carbon tapered fork with 15mm bolt through axle
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore 20 speed rapid fire shifters
Cassette
Shimano CS-HG500, 10 speed, 11-34 teeth
Crank
Shimano Deore 38-28 teeth
Chain
KMC X10
Wheels
Front Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rear Hub
Alloy hubs (front with 15mm bolt through) allen key security fixing and centerlock
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35c with kevlar puncture protection and reflective strip
Brakes
Brakes
Shimano M315 hydraulic disc, 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Comp 660mm wide 25mm rise
Headset
MERIDA M2339
Seat
Saddle
Crossway comfort
Seatpost
MERIDA Comp 12mm, 27.2mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.44 mm | 1.42 mm | 1.41 mm | 1.44 mm | 1.45 mm | 1.51 mm |
| Front Center | 625 mm | 625 mm | 625 mm | 635 mm | 640 mm | 645 mm | 660 mm | 664 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 69 mm | 69 mm | 66 mm | 66 mm | 66 mm | 63 mm |
| Stack | 559 mm | 564 mm | 570 mm | 575 mm | 582 mm | 596 mm | 615 mm | 641 mm |
| Reach | 396 mm | 394 mm | 397 mm | 406 mm | 414 mm | 414 mm | 423 mm | 424 mm |
| Top Tube Length | 558 mm | 558 mm | 568 mm | 578 mm | 588 mm | 598 mm | 613 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 145 mm | 150 mm | 155 mm | 160 mm | 165 mm | 180 mm | 200 mm | 225 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1059 mm | 1059 mm | 1059 mm | 1069 mm | 1074 mm | 1079 mm | 1094 mm | 1098 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 690 mm | 714 mm | 730 mm | 746 mm | 776 mm | 800 mm | 826 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

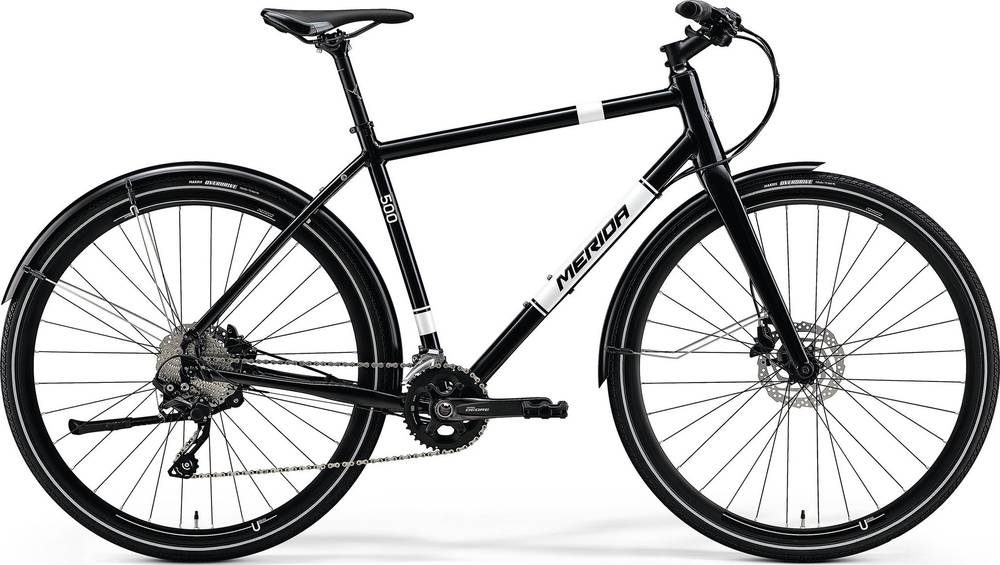

Model Overview
CROSSWAY URBAN 500 is a Merida Crossway model. Merida launched 210 bikes of this model so far. Take a sneak peek at all Merida Crossway bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida CROSSWAY URBAN 500 it’s weighing 12.01 kg (26.48 lbs). At this weight, is much lighter than average. In other words, this model is 15.32% lighter than the average Hybrid bike.
CROSSWAY URBAN 500 components
Fork material
CROSSWAY URBAN 500 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the CROSSWAY URBAN 500 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
