Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN TFS LADY
Suspension Fork
CC Carbon disc 15
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore double
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG500-10 11-34
Crank
Shimano M627 38-24
Chain
KMC X10
Wheels
Front Hub
Centerlock-15 allen / Centerlock cassette allen
Rear Hub
Centerlock-15 allen / Centerlock cassette allen
Rims
MERIDA Urban
Spokes
Black stainless
Tires
Maxxis Overdrive 35 kevlar ref
Brakes
Brakes
Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
Big Conoid semi neck pro
Seat
Saddle
Crossway comfort lady
Seatpost
MERIDA Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.43 mm | 1.42 mm | 1.39 mm |
| Front Center | 630 mm | 630 mm | 640 mm | 645 mm | 655 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 69 mm | 66 mm |
| Stack | 587 mm | 592 mm | 597 mm | 603 mm | 610 mm |
| Reach | 410 mm | 409 mm | 417 mm | 425 mm | 438 mm |
| Top Tube Length | 582 mm | 582 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 160 mm | 165 mm | 170 mm | 175 mm | 180 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1078 mm | 1078 mm | 1088 mm | 1093 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 593 mm | 596 mm | 597 mm | 596 mm | 599 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

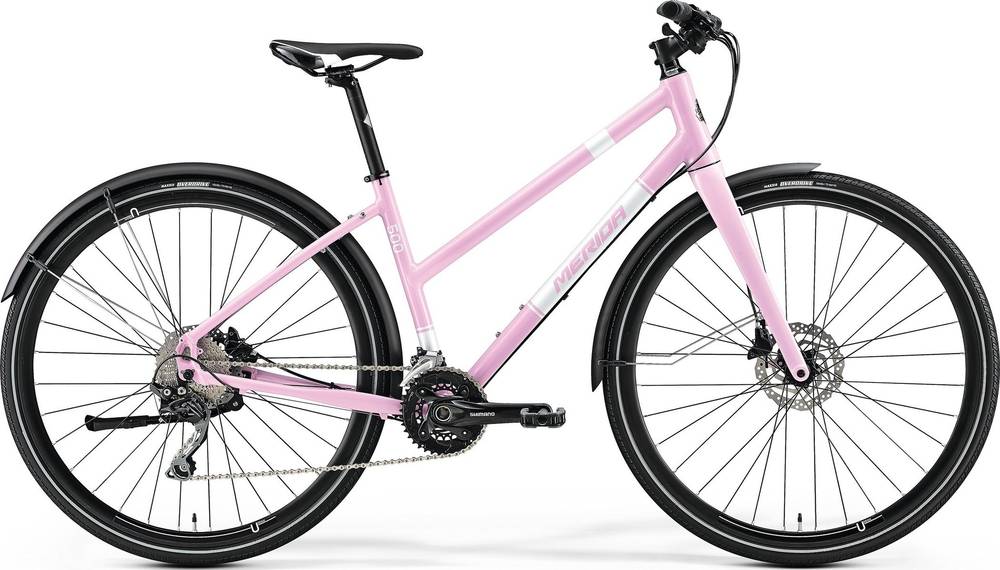

CROSSWAY URBAN 500 LADY belongs to the Merida Crossway model. Merida launched 210 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida CROSSWAY URBAN 500 LADY it’s weighing 11.33 kg (24.98 lbs). At this weight, is much lighter than average. In conclusion, the average Hybrid bike weighs 22.24% more than CROSSWAY URBAN 500 LADY.
Overview of components
Fork material
CROSSWAY URBAN 500 LADY has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The CROSSWAY URBAN 500 LADY 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY URBAN 500 LADY is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
