Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset XT -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY URBAN CF3
Suspension Fork
CC Carbon disc 15
Drivetrain
Rear Derailleur
Shimano XT 11
Shift Levers
Shimano XT-i 11
Cassette
Shimano CS-M8000-11 11-40
Crank
Shimano XT 34-single (BB86)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11EL
Wheels
Front Hub
Centerlock-15 fix Track / Centerlock-12 fix Track
Rear Hub
Centerlock-15 fix Track / Centerlock-12 fix Track
Rims
MERIDA comp Pro D
Spokes
Black stainless
Tires
Maxxis Overdrive 35 kevlar ref
Brakes
Brakes
Shimano M615 160 cen
Cockpit
Handlebar
MERIDA pro OS 660 R12
Headset
FSA BB410P/No.55E
Seat
Saddle
Crossway comfort pro
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.46 mm | 1.48 mm | 1.5 mm |
| Front Center | 579 mm | 575 mm | 589 mm | 598 mm | 614 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 72 mm | 65 mm | 65 mm | 62 mm | 62 mm |
| Stack | 523 mm | 537 mm | 556 mm | 576 mm | 596 mm |
| Reach | 372 mm | 372 mm | 381 mm | 389 mm | 398 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 111 mm | 131 mm | 150 mm | 171 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 994 mm | 990 mm | 1005 mm | 1014 mm | 1030 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 792 mm | 817 mm | 844 mm | 872 mm | 897 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

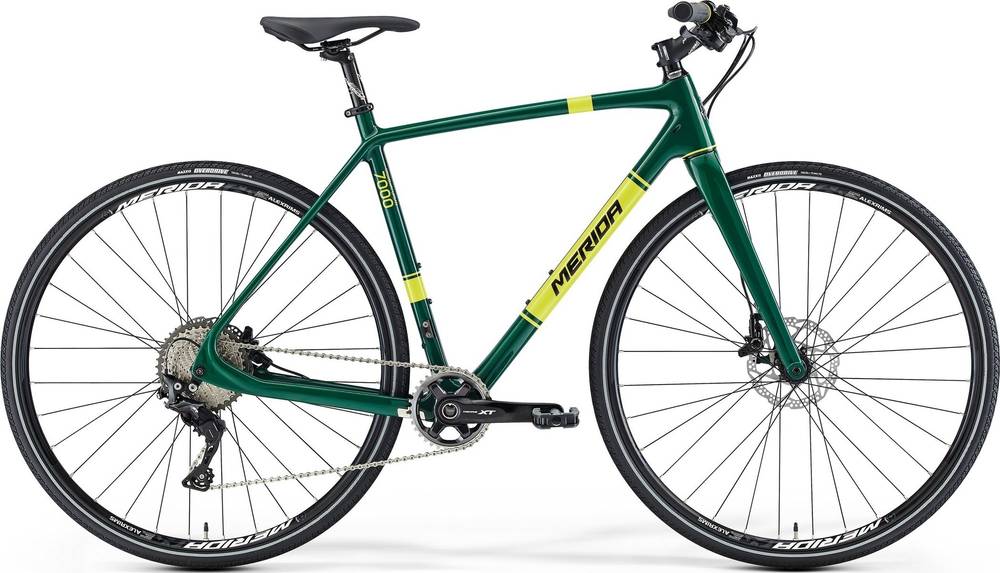

CROSSWAY URBAN 7000 is part of the Merida Crossway model. There are 210 bikes that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.1 kg (20.06 lbs), Merida bike is much lighter than average. In conclusion, the average Hybrid bike weighs 52.2% more than CROSSWAY URBAN 7000.
Overview of components
Fork material
CROSSWAY URBAN 7000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The CROSSWAY URBAN 7000 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida CROSSWAY URBAN 7000 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
